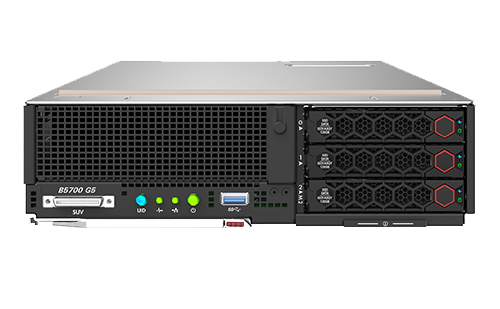

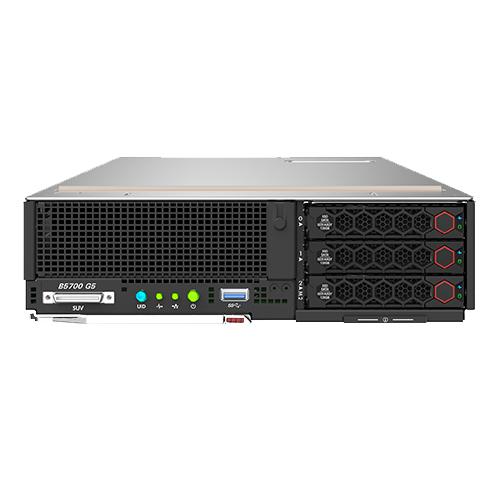

H3C UniServer B5700 G5 2-socket server is designed for rich configurations and complex deployment solutions. It can flexibly optimize your core IT applications for workloads, thereby reducing TCO, accelerating IT service delivery.
Rich Specification
Up to 2 Sockets
Up to 32 Memory Slots
Up to 3 2.5-inch Drives
Up to 5 PCIe 4.0 Slots
Centralized deployment
Touchable LCD Module
Intelligent ManagementSystem
Advanced Design
Intelligent Cooling System
Intelligent Monitor System
88 RAS Features
|
CPU |
2 3rd Generation Intel®Xeon® Ice Lake Scalable series 235W power consumption |
|
Chipset |
Intel® C621A |
|
Memory |
32 DDR4 RDIMM Slots, 3200 MT/s Data Rate 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series |
|
Raid Controller |
Embedded RAID controller (SATA RAID 0,1,5) Mezzanine RAID HBA controller (SATA/SAS RAID 0,1) Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60) |
|
FBWC |
4 GB Cache, support Supercapacitor protection* |
|
Storage |
Front 3SFF bays* Front SAS/SATA HDD/SSD/NMVe Drives, maximum 2 NVMe Drives Front 2 SATA M.2 SSDs |
|
Network |
2 Onboard 1 Gbps Port Internal Mezzanine Slots for 4x10GE, 2x10GE, 2x25GE, 2x16GE, 2 x32GE NIC Front PCIe Standard Slots for Ethernet adapter |
|
Expansion Slots |
5 PCIe 4.0 Slots 1 Standard Slot and 3 Mezzanine Slots and 1 Raid-dedicated Slots |
|
Ports |
1 Front USB 3.0 Port,1 SUV Port (2 USB2.0, Serial Port, VGA Port) |
|
GPU |
1 LP GPU Modules |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
Management |
Chassis integrated |
|
Security |
TPM2.0 |
|
Power supply |
Chassis integrated |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions |
Single Height and Half Width |
*The Options may be different depending on the specific requirement, refer to related User Guide
