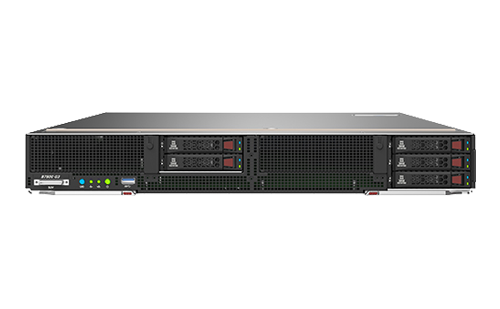

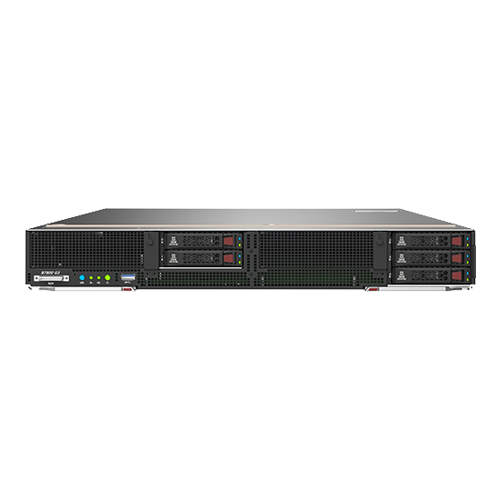

H3C UniServer B7800 G3 Server

H3C UniServer
Contact Us

Product Details

H3C UniServer B7800 G3 4-socket server can provide higher performance and scalability for your demanding enterprise data-intensive workloads. Quick time to value at minimal cost. This advantage makes it ideal for workloads that require the best balance of space, price, and performance, including virtualization, databases, business processing, analytics, high-performance computing (HPC), and other data-intensive applications . Transform your data center to be flexible for current and future business challenges.

  • Features
  • Rich Specification

    Up to 4 Sockets

    Up to 48 Memory Slots

    Up to 5 2.5-inch Drives

    Up to 9 PCIe 3.0 Slots

  •

    Centralized deployment

    Touchable LCD Module

    Intelligent Management System

  •

    Advanced Design

    Intelligent Cooling System

    Intelligent Monitor System

    88 RAS Features

  •

CPU

4 2nd Generation Intel®Xeon® Cascade Lake Scalable series

Chipset

Intel® C621

Memory

48 DDR4 RDIMM Slots, 2933 MT/s Data Rate

24 Intel ® Optane™ DC Persistent Memory Module series

Raid Controller

Embedded RAID controller (SATA RAID 0,1,5)

Mezzanine RAID HBA controller (SATA/SAS RAID 0,1)

Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60)

FBWC

4 GB Cache, support Supercapacitor protection*

Storage

5 Front SFF Drive Slots

2 Internal SD cards

2 Front M.2 Drives and 2 Internal M.2 Drives

4 Front NVMe drives

Network

2 Onboard 1 Gbps Port

Internal Mezzanine Slots for 4x10GE, 2x10GE, 2x25GE, 2x16GE, 2 x32GE NIC

Expansion Slots

9 PCIe 3.0 Slots

2 Standard Slots, 3 Mezzanine Slots, 1 Raid-dedicated Slots

Front PCIe Standard Slots for Ethernet adapter

Ports

1 Front and 1 Internal USB 3.0 Port,1 SUV Port (2 USB2.0, Serial Port, VGA Port)

Optical Drive

External Optical Disk Drive, Optional

GPU

2 LP GPU Modules

Management

Chassis integrated

Security

TPM2.0

Power supply

Chassis integrated

Operating temperature

5°C to 45°C (41°F to 113°F) *

Dimensions

Single Height and Full Width
