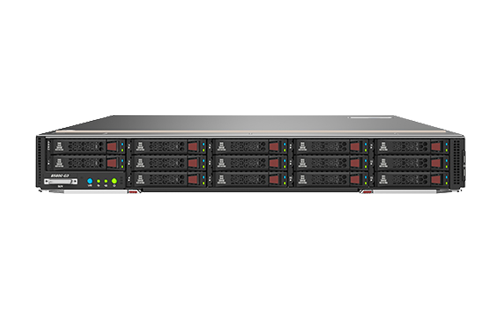

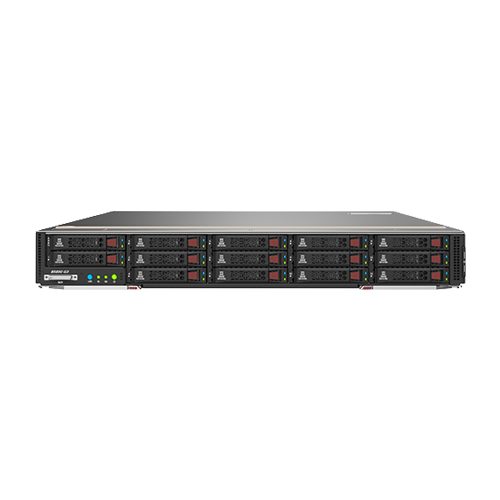

H3C UniServer B5800 G3 2-socket server is specially designed for high-density, large-capacity local storage deployment solutions. It is a product that combines storage and computing resources, and can flexibly optimize your core IT applications for workloads. , so as to reduce TCO, accelerate IT service delivery.
Rich Specification
Up to 2 Sockets
Up to 24 Memory Slots
Up to 14 2.5-inch Drives
Up to 4 PCIe 3.0 Slots
Centralized deployment
Touchable LCD Module
Intelligent Management System
Advanced Design
Intelligent Cooling System
Intelligent Monitor System
88 RAS Features
|
CPU |
2 2nd Generation Intel®Xeon® Cascade Lake Scalable series |
|
Chipset |
Intel® C621 |
|
Memory |
24 DDR4 RDIMM Slots, 2933 MT/s Data Rate 12 Intel ® Optane™ DC Persistent Memory Module PMem series |
|
Raid Controller |
Embedded RAID controller (SATA RAID 0,1,5) Mezzanine RAID HBA controller (SATA/SAS RAID 0,1) Mezzanine RAID storage controllers (SATA/SAS 0,1,10,5,6,50,60) |
|
FBWC |
4 GB Cache, support Supercapacitor protection* |
|
Storage |
14 Front SFF Drive Slots 2 Internal SD cards 2 Front M.2 Drives and 2 Internal M.2 Drives 9 Front NVMe drives |
|
Network |
2 Onboard 1 Gbps Port Internal Mezzanine Slots for 4x10GE, 2x10GE, 2x25GE, 2x16GE, 2 x32GE NIC |
|
Expansion Slots |
4 PCIe 3.0 Slots 3 Mezzanine Slots, 1 Raid-dedicated Slots |
|
Ports |
1 Internal USB 3.0 Port,1 SUV Port (2 USB2.0, Serial Port, VGA Port) |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
Management |
Chassis integrated |
|
Security |
TPM2.0 |
|
Power supply |
Chassis integrated |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions |
Single Height and Full Width |
*The Options may be different depending on the specific requirement, refer to related User Guide
