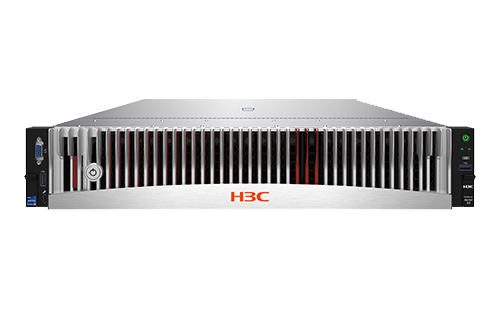

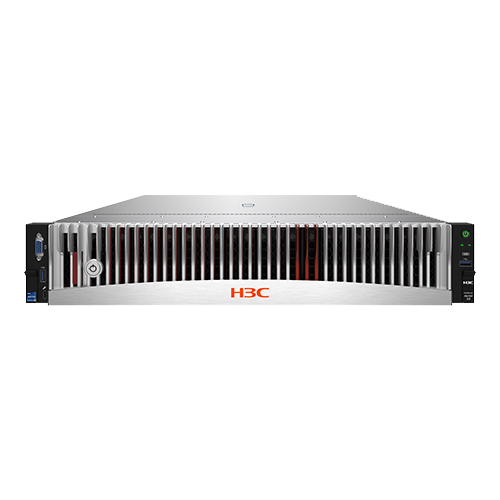

H3C UniServer R6700 G6 is a 2U quad-socket rack server independently developed by H3C based on the Intel Eagle Stream platform. It adopts a high-density architecture design and can provide higher computing power, scalability and reliability in a 2U chassis. It is ideal for intensive deployment of business-critical workloads, virtualization, database and other applications.

Highlights:2U space provides enterprise-level high scalability

H3C UniServer R6700 G6 supports 4 new Intel® Xeon® 4th-Generation Scalable Processors, which can achieve up to 1.14 times the number of CPU cores compared to the previous generation. With the support, the performance of R6700 G6 under critical business loads can be greatly improved. The new generation of DDR5 4800MT/s memory has a 50% peak bandwidth increase compared to DDR4 3200MT/s memory.

It supports SAS 4.0 hard disk backplane and PCIe5.0 expansion slots to achieve excellent I/O expansion capabilities. At the same time, the R6700 G6 is designed with a modularly expandable power slot, which provides strong power support for higher hardware configurations. At the same time, the flexible redundancy solution further improves the overall reliability of the 2U quad-socket server.

Intelligent-ready full lifecycle management

H3C UniSystem unified management platform can cover all aspects of server deployment, operation and maintenance, diagnosis and decommissioning. Extremely fast out-of-band OS installation technology and agile stateless computing functions can improve the efficiency of business online and flow by 10 times; the newly evolved application tuning template can intelligently identify business loads and match the optimal configuration, thereby improving the overall machine 5 % performance; with the support of AI technology, the new H3C server intelligent core engine can achieve a fault diagnosis accuracy of up to 95% and effectively reduce unplanned downtime by 40%. The convenient, efficient and accurate new H3C server management platform will further enhance the server O&M management experience and help enterprise customers meet the challenges brought by large-scale data center management with confidence.



Extraordinary performance

4 Intel® Xeon® 4th Generation Scalable Processors

64 DIMM DDR5 4800MT/s

2U high-density scalable design

Flexible combination of multiple drive backplanes

Easy-to-expand PCIe5.0 I/O slots

Enhanced security design

TPM 2.0

Safe decommissioning



CPU

4 4th Generation Intel®Xeon®Sapphire Rapids SP series

60 Cores for each Processor with 350W power consumption

Chipset

Intel®C741

Memory

64 DDR5 RDIMM Slots, 4800 MT/s Data Rate

Raid Controller

Onboard SATA Raid Controller

Standard PCIe HBA Controller or Raid Controller*

FBWC

8 GB Cache, support Supercapacitor protection*

Storage

27 SAS/SATA HDD/SSD Drives

26 U.2 NVMe Drives

Supports PCIe NVMe storage accelerator card, Dual hot-swappable SATA M.2 Kit

Network

1 Onboard 1Gbps Management Network Port

Onboard OCP 3.0 x16 Slots for 4 GE or 2 10GE or 2 25GE NICs

PCIe Standard Slots for 1/10/25/40/100/200Gb Ethernet Adapter or 100/200Gb InfiniBand card

Expansion Slots

Up to 8 PCIe 5.0 x16 Standard Slots

Up to 10 PCIe 5.0 x8 Standard Slots

Up to 3 OCP 3.0 Slots

Ports

2 VGA Rear Ports (1 Front, 1 Rear), 4 USB 3.0 Ports (2 Front, 2 Rear),1 Management Port

Optional: Mounting Bracket Kit with Type-C port, Power-Button, UID

Optical Drive

External Optical Disk Drive, Optional

Management

HDM Management System (with dedicated management port)

H3C iFIST/FIST, LCD touchable model,64M Video Cache

Security

Intelligent Front Security Bezel*

Chassis Intrusion Detection

TPM2.0

Silicon Root of Trust

2FA for HDM

Secure Decommissioning

Power supply

2 CRPS supplies, Compatible with expandable 4 power supplies (N+N redundancy)

Titanium 850/1600W

Platinum 850/1300/1600/2000/2400W

Hot swappable N+1 Redundant Fans

Standards

CE,UL , FCC,VCCI,CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)*

Dimensions

(H×W×D)

2U Height

Without a security bezel: 87.5x447x829mm (3.44x17.60x32.63 in)

With a security bezel: 87.5x447x857.5mm (3.44x17.60x33.76 in)

* The Options may be different depending on the specific requirement, refer to related User Guide
