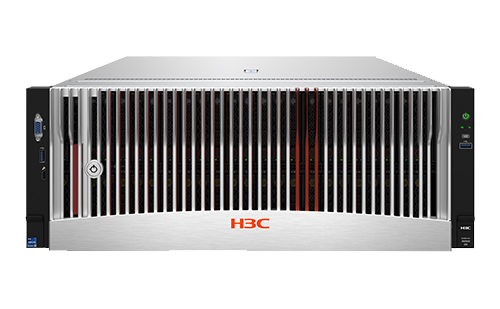

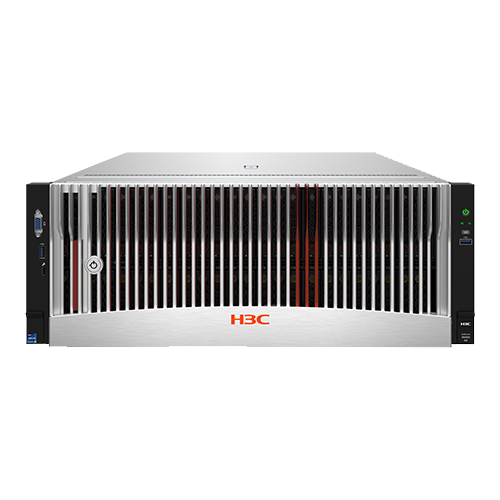

H3C UniServer R6900 G6 server is a new generation of 4U quad-socket rack server independently developed by H3C based on the Intel Eagle Stream platform. It’s design has been fully optimized on the basis of the previous generation product, reaching a new height in terms of performance, scalability and low-carbon energy saving. It is another benchmark quad-socket server product after the G5 product. Ideal for mission-critical data-intensive applications such as large-scale virtualization, databases, in-memory computing, data analytics, data warehousing, business intelligence, and ERP.
Highlights：Excellent performance
Four Intel® Xeon® 4th-generation scalable processors, with a single CPU core of up to 60 cores and a maximum frequency of 3.9GHz. The entire machine can provide 240 cores and 480 threads
Up to 64 4800MT/s DDR5 memory with a memory capacity of 16TB
Up to 6 DW GPU cards to provide excellent AI computing power
Flexible expansion
Modular design to support diverse customer needs
Supports multiple hard drive types, up to 50 hard drives, 32 NVMe hard drives, and 8 E1.S hard drives
Up to 22 PCIe 5.0 slots to support various I/O needs
Low carbon energy saving
The processor intelligently and dynamically saves energy. The system monitors resource utilization and senses business trends, and dynamically modulates frequency to effectively reduce CPU power consumption.
Intelligent cooling system automatically identifies hot spots, provides accurate cooling coverage, maximizes efficiency, and reduces server energy consumption by 30%.
Intelligent power supply system dynamically adjusts the power supply mode according to the system load to improve power conversion efficiency.
|
CPU |
4 4th Generation Inte®Xeon® Sapphire Rapids SP series 60 Cores for each Processor with 350W power consumption |
|
Chipset |
Intel®C741 |
|
Memory |
64 DDR5 RDIMM Slots, 4800 MT/s Data Rate |
|
Raid Controller |
Onboard SATA Raid Controller Standard PCIe HBA Controller or Raid Controller* |
|
FBWC |
8 GB Cache, support Supercapacitor protection* |
|
Storage |
50 SAS/SATA HDD/SSD Drives 32 U.2 NVMe Drives Supports PCIe NVMe storage accelerator card,Dual hot-swappable SATA M.2 Kit |
|
Network |
1 Onboard 1Gbps Management Network Port Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE NICs PCIe Standard Slots for 1/10/25/40/100/200Gb Ethernet Adapter or 100/200Gb InfiniBand card |
|
Expansion Slots |
Up to 10 PCIe 5.0 x 16 Standard Slots Up to 22 PCIe 5.0 x 8 Standard Slots Up to 3 Onboard OCP 3.0 Slots |
|
Ports |
Standard:2 VGA Rear Port (1 Front, 1 Rear), 4 USB 3.0 Ports (2 Front, 2 Rear), 1 Management Port Optional: Mounting Bracket Kit with Type-C port, Power-Button, UID |
|
GPU |
Supports dual and Single-Slot GPU Modules |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
Management |
HDM Management System (with dedicated management port) H3C iFIST/FIST, LCD touchable model |
|
Security |
Intelligent Front Security Bezel* Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM Secure Decommissioning |
|
Power supply |
4 CRPS supplies, 2000W (N+N redundancy) Titanium 850/1600W Hot swappable N+1 Redundant Fans |
|
Standards |
CE，UL , FCC，VCCI，CB, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions (H×W×D) |
4U Height Without a security bezel: 174.8x447x830mm (6.88x17.60x32.68 in) With a security bezel: 174.8x447x858mm (6.88x17.60x33.78 in) |
*The Options may be different depending on the specific requirement, refer to related User Guide
