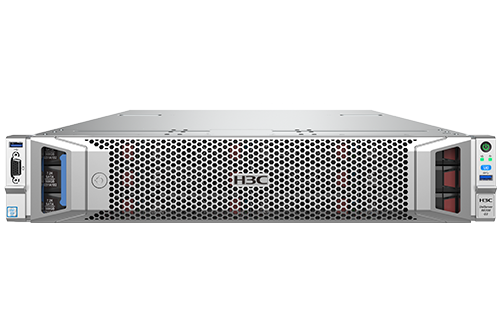

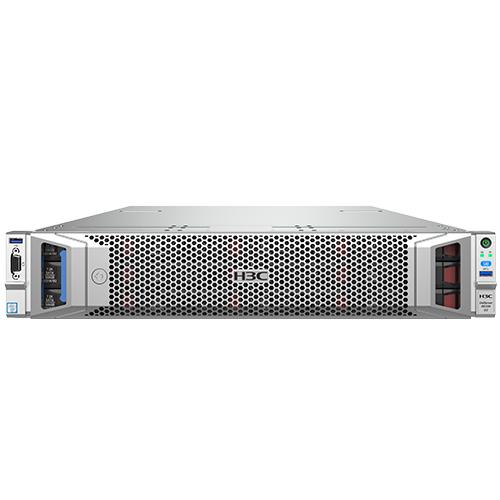

Design for High Reliability, High performance, High Density
4 sockets of the recent Intel®Xeon®Scalable
Processors
8 x single-slot wide GPU modules
24 x Intel ® Optane™ DC Persistent Memory Module
26 x SFF Drives
18 x NVMe Drives
11 x PCI-E 3.0 Slots
2U High-density rack
High RAS features
Redundant Components
TPM/TCM
Chassis Intrusion Detection
|
Computing |
4 × Intel® Xeon® Scalable processors (Up to 28 cores and maximum 205 W power consumption) |
|
Memory |
48 × DDR4 DIMMs, 6.0 TB (maximum) (Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM) (Up to 24 Intel ® Optane™ DC Persistent Memory Module.(DCPMM) |
|
Storage controller |
Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe HBA cards and storage controllers (Optional) |
|
FBWC |
8 GB DDR4-2133MHz |
|
Storage |
Maximum Front 24SFF + rear 2SFF, Support SAS/SATA HDD/SSD Drives Maximum 16 front UniBay Slots，Rear 2 x UniBay Slots，Support SAS/SATA/NVMe Drives SATA M.2 SSDs (Optional) 2 × SD internal slots (Optional) |
|
Network |
1 × onboard 1 Gbps management network port 2 × onboard 1 Gbps network port Support sLOM 4 × 1GE copper ports or 2 × 10GE/2 x 25GE fiber ports, sLOM support NCSI function Support Standard PCIe 3.0 Ethernet Adapters Support 10/25/40/100GE/IB/OPA High-performance Ethernet Adapter， Support FC-HBA SAN Adapter |
|
PCIe slots |
11 × PCIe 3.0 slots (one dedicated slot for Ethernet adapter,6 x FH slots,8 x PCIe x16 slots) |
|
Ports |
Front VGA connector Rear VGA connector and serial port(RJ-45) 5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server) 1 × USB 2.0 front connector SFF Liquid Crystal Display Module (Optional) |
|
GPU |
8 × single-slot wide GPU modules |
|
Optical drive |
External optical disk drive (Optional) |
|
Management |
HDM (with dedicated management port) and H3C FIST, Support LED/LCD screen*diagnostic panel |
|
Security |
Support Chassis Intrusion Detection TPM2.0 |
|
Power supply |
Platinum 1600W(supports 1+1 redundancy) , 800W –48V/336V DC power supplies (1+1 redundancy) Hot swappable fans (supports redundancy) |
|
Standards |
CE，UL , FCC，VCCI，EAC, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
|
Dimensions (H × W × D) |
2U Height Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in) With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in) |
*Configuration may vary, refer to related user guide for more detail
