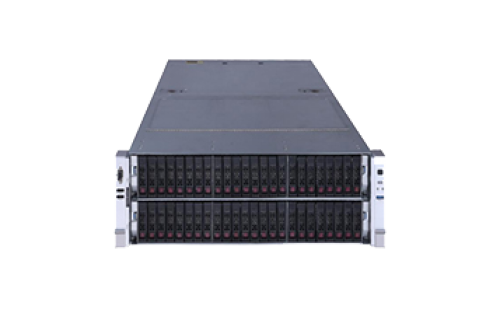

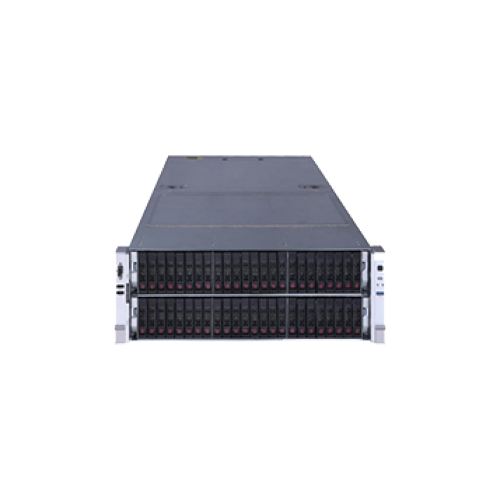

H3C latest UniServer R6900 G3 supports multiple computing nodes with modular design including 48 SFF hard disks or 16 NVMe SSD. R6900 G3 server delivers another level of reliability and availability, and is the best choice for mission critical business workload, virtualization, server consolidation and general 4-way data intensive application.
H3C UniServer R6900 G3 is based on the latest Intel®Xeon® Platinum and Gold Scalable Processors to improve server performance by 50% and 27% in the number of cores. Upgraded 2666MT/s DDR4 memory technology boosts speed by 11% over the DDR4 2400MT/s. 20 PCle 3.0 I/O channels achieves unprecedented expandability, with 94%/96% energy efficiency and 5-45℃ standard operating temperature , it gives user highly energy efficiency.
With H3C UniServer R6900 G3 server, you can implement the following mission critical workloads:
Virtulization – run multiple mission critical workloads on R6900 G3 to simplify infrastructure equipment;
Big data – manage exponential data growth, including structured, semi-structured and unstructured data;
Database/online transaction – provide database support for realtime transaction business;
Middleware – provide mission critical platform for different industries that is highly reliable and highly available;
Customer Relationship Management (CRM) – understand your data inside out to improve customer satisfaction and loyalty;
Enterprise Resource Planning (ERP) – trust R6900 G3 for near realtime implementation for your business application;
High performance computing and deep learning – provide extremely high memory capacity for high performance fat node computing with GPU support.
H3C UniServer R6900 G3 server supports multiple operating systems and hypervisors, including but not limited to Microsoft® Windows®,Linux, VMWare and H3C CAS.
|
Computing |
Up to 4 Intel® Xeon® Processor Scalable Platinum/Gold Family, 4/6/8/10/12/14/16/18/20/22/24/26/28 Cores, Maximum Support of 205W |
|
Memory |
Up to 48 DDR4 memory, Maximum support 2666MT/s, support RDIMM or LRDIMM, maximum capacity of 6TB |
|
Storage Controller |
Standard Array controller supports SATA RAID 0/1/10/5 Optional HBA card on Array card slot, support SATA/SAS RAID 0/1/10 Optional Array card on Array card-specific slot, support RAID 0/1/10/5/6/50/60/1E/Simple Volume Optional standard PCIe 3.0 HBA and Smart Array card |
|
FBWC |
Support up to 2GB DDR3-1,866 MHz, 72-bit wide bus at 14.9 GB/s IO Performance
|
|
Local Storage |
Supports SAS/SATA HDD/SSD; Maximum 48SFF front mounted drive Supports a maximum of 16 NVMe, supports PCIe M.2 options |
|
Network |
Embedded 1Gbps HDM management network port; Optional 4×1GE electrical ports, 2×10GE Electrical Ports, 2×10GE optical ports through mLOM, mLOM Supports NCSI function, optional standard PCIE 3.0 network adapter options |
|
Expansion Slots |
Upto 20 PCIe 3.0 slots (18 rear standard slots, 2 front, supports GPU) |
|
Ports |
Optional front VGA, standard rear VGA, serial port, 4 USB 3.0 (1 front, 2 rear, 1 built-in), 2 USB 2.0 (2 front) |
|
GPU Support |
Support 2 double wide GPU options upto 10.5”
|
|
CD-ROM |
Supports external CD-ROM drive |
|
Management |
HDM agentless management tools (with independent management port) and H3C FIST management software |
|
Power & Cooling |
Optional Platinum Level 800W/1200W/1600W Optional Platinum Level 800W 336VHDC N+N redundant power supply Passed 80 Plus certification, up to 96% energy efficiency conversion rate Support hot-swappable redundant fans
|
|
Certification |
Support CCC, CECP, SEPA Certification
|
|
Operating Temperature |
5℃～45℃ |
|
Shape/ Chassis dimensions |
4U 174.8mm(H)*444mm(W)* 807.4mm(D) (without safety panel) |
|
Warranty |
3-year 5*9 Next Business Day Warranty |
