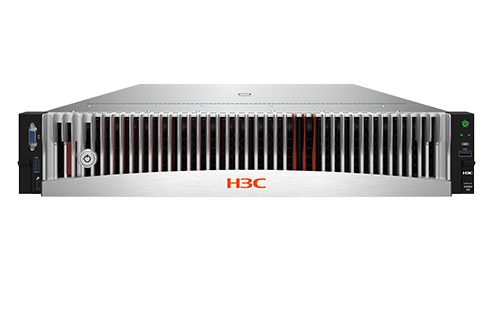

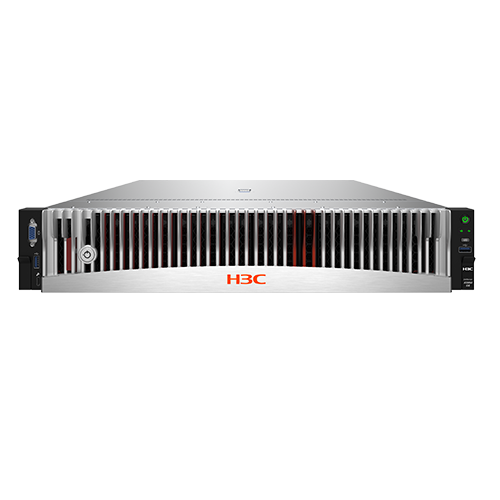

H3C UniServer R3950 G6 rack server is an enterprise-level 2U single-socket server developed by H3C based on AMD EPYC 9004 series processors. It features low cost, low power consumption, strong computing power, and strong scalability. With the powerful performance of AMD EPYC single processor, it can meet the demands of virtualization, distributed storage, data analysis and other scenarios.
Economical and Energy-saving
Innovative single-socket design reduces hardware procurement costs and overall power consumption
Single CPU software licensing saves 50% of software cost
High Performance
1 AMD EPYC 9004 processor
Up to 128 physical cores
The number of cores is 100% higher than the previous generation
Flexible Expansion
Up to 41* hard drives
Up to 28 U.2 NVMe SSDs
Up to 8 PCIe 5.0 standard slots
|
CPU |
1 AMD EPYC 9004 series processor Up to 128 cores with a maximum power of 400W |
|
Memory |
Up to 12 DDR5 memory slots Up to 4800MT/s, RDIMM or 3DS RDIMM, with a maximum memory capacity of 3TB* |
|
RAID Controller |
Optional RAID controller based on standard PCIe slot |
|
Storage |
Up to 41* 2.5-inch SATA/SAS hard drives (25 front + 8 mid + 8 rear) Up to 20* 3.5-inch SATA/SAS hard drives (12 front + 4 mid + 4 rear) Up to 28 U.2 NVMe SSDs Up to 2 2280/22110 SATA/NVMe M.2 hard drives |
|
Network |
Up to 2 onboard OCP 3.0 NICs + 1 optional OCP 3.0 NIC* Network adapter based on standard PCIe slot |
|
Expansion Slots |
Up to 8 PCIe5.0 standard slots |
|
I/O Ports |
Front: Left chassis ear (optional): 1 VGA, 1 USB3.0, 1 Type C port. Right chassis ear: 1 USB3.0/2.0 Built-in: 1 USB3.0 Rear: 1 VGA, 1 serial port (optional), 2 USB3.0, 1 HDM dedicated network port |
|
GPU |
Up to 4 double-width or 8 single-width GPU modules |
|
Management |
H3C HDM Standard License, iFIST (embedded), H3C Advanced Feature Package License (optional, requires licenses), H3C UniSystem (requires download) Support LCD touchable intelligent management module |
|
Security |
Chassis intrusion detection TCM/TPM security module CPU built-in dedicated security processor |
|
Power supply |
Titanium 850W/1600W, Platinum 1300W power supply in 1+1 redundancy Hot-swappable redundant fans |
|
Standards |
CE，UL , FCC，VCCI，CB, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) |
|
Dimensions (H×W×D) |
2U height Without a security bezel: 87.5x445.4x780 mm (3.44x17.54x30.7 in) With a security bezel: 87.5x445.4x808 mm (3.44x17.54x31.8 in) |
* The options may be different depending on the specific requirement. Restrictions and limitations may apply. To confirm availability, refer to related user guide or visit H3C website https://www.h3c.com/en/home/htb/.
