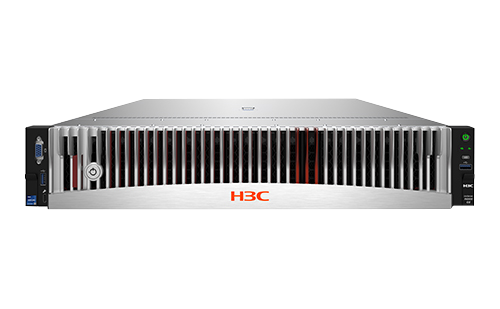

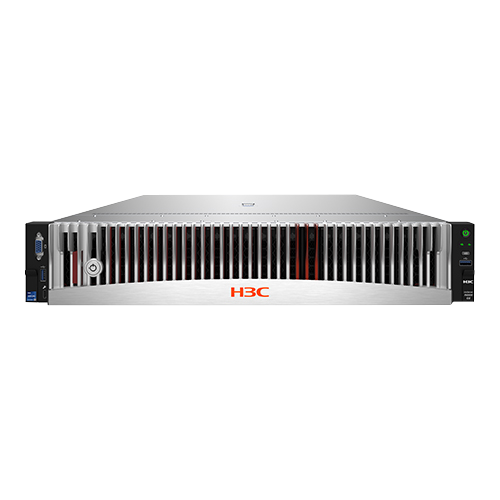

H3C UniServer R4900 G7 Rack Server

Rack Server
Contact Us

Product Details

H3C UniServer R4900 G7 server is a 2U 2-Socket Rack Server based on Intel's new generation Birch Stream platform. It is balanced and versatile in computing performance, storage capacity, power saving, expansion capability and reliability, and is easy to manage and deploy.

R4900 G7 server can be widely used in general computing scenarios, including cloud computing, virtualization, distributed storage and enterprise resource planning, and is suitable for typical applications in various industries such as the Internet, operators, enterprises, and governments.

As a independently developed mainstream 2U 2-Socket Rack Server, H3C UniServer R4900 G7 is based on Intel® Xeon® 6 processors and equipped with 8-channel 6400MT/s DDR5 memory technology, which brings a 14% bandwidth increase. The server I/O can reach the bandwidth rate of PCIe 5.0, and achieves excellent expansion capabilities through local storage support of up to 10 standard PCIe slots or up to 29 hard disk slots. 96% power supply energy efficiency and standard operating temperature design of 5℃ - 45℃ provide users with higher energy efficiency returns.

R4900 G7 is optimized for scenarios:

Virtualization - Run multiple workloads on a single R4900 G7 to save floor space

Big data - Manage the exponential growth of data volume, including structured, unstructured and semi-structured data

Storage-centric applications - Eliminate I/O bottlenecks and improve performance

Data warehouse/analysis - Find the information you need on demand to make smarter business decisions

Customer relationship management (CRM) - Get a 360-degree view of your data to improve customer satisfaction and loyalty

Enterprise resource planning (ERP) - Trust the H3C UniServer R4900 G7 to help you run your business in near real time

H3C UniServer R4900 G7 server supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS environments.

  • Features
  •
  • Highly Efficient Standard Compute

    Up to 288 CPU cores

    Up to 3 dual-slot GPU

    Up to 10 single-slot GPU

    XPU



    Ultra I/O Structure

    32 DDR5 Memory Slots

    6400MT/s Speed

    24 U.2 NVME SSD

    10 PCI-E Standard Slots

    2 onboard OCP3.0 Slots

    1 dedicated RAID Mezz slot



    Multi-Tier Protection

    Chassis Intrusion Detection

    SGX 2.0

    TPM 2.0

    HDM Two-factor Authorization

  •

CPU

2 Intel® Xeon® 6 Processors

144 Cores for each Processor and 330W power consumption

Memory

32 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 8TB on 2 CPU Configuration with 256G DDR5 RDIMM

Raid Controller

Dedicated Mezz / Standard PCIe HBA Controller or Raid Controller

FBWC

8 GB Cache, support Supercapacitor protection

Storage

29 Drives

Front 12LFF bays, Rear 4LFF bays

Front 25SFF bays, Rear 4SFF bays

SAS/SATA HDD/SSD Drives, 24 U.2 NVMe Drives, 36 E3.S SSD, 8 E1.S SSD slots

SATA/NVMe M.2 Kit, DSD Model (2 x SD card kit)

4 Drive Tri-Mode Backplane

Network

1 Onboard 1Gbps Management Network Port

2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs

PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter

Expansion Slots

13 PCIe Slots

10 PCIe5.0 Standard Slots, 2 Onboard OCP 3.0 Slots and 1 Dedicated Mezz Slot

Maximun 3 OCP3.0 slots

Ports

Standard: 1 VGA Rear Port, 4 USB Ports (1 Front, 2 Rear, 1 Internal), 1 Management Port

Optional: 1 Rear Management Port, Mounting Bracket Kit with Type-C port, 1 VGA port, 1 Management Port

GPU

10 Single-Slot or 3 Dual-Slot GPU Modules

Optical Drive

External Optical Disk Drive, Optional

Management

HDM Management System (with dedicated management port)

H3C iFIST/UniSystem, LCD touchable model,64M Video Cache

Security

Intelligent Front Security Bezel

Chassis Intrusion Detection

TPM2.0

2FA for HDM

Intel SGX2.0 and PFR4.0

Power supply

1+1 Redundancy power supply

Platinum 800W/1300W/1600W/2000W/2400W/2700W

Optional Titanium power supply

DC power supply

Hot swappable Redundant Fans

Standards

CE,UL etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

Dimensions

(H×W×D)

2U Height

Without a security bezel: 87.5x445.4x800mm (3.44x17.54x31.5 in) With a security bezel: 87.5x445.4x828mm (3.44x17.54x32.6 in)

*The Options may be different depending on the specific requirement, refer to related User Guide

  •
