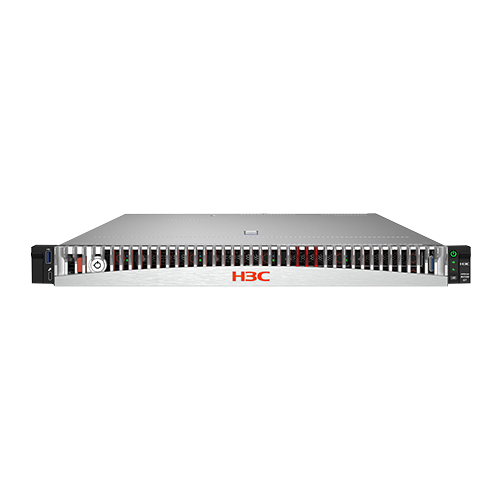

H3C UniServer R4700 G7 server is 1U 2–Socket Rack Server based on Intel's new generation Birch Stream platform. It can meet customers' higher requirements for deployment space and economy.While taking into account computing performance and scalability, it has better space optimization and is easy to deploy.
R4700 G7 server can be widely used in general computing scenarios, including databases, virtualization, cloud desktops and other scenarios. It is suitable for typical applications in multiple industries such as the Internet, enterprises, and finance.
As a self-developed high-performance 1U 2–Socket Rack Server, H3C UniServer R4700 G7 is based on Intel® Xeon® 6 Processors, with up to 6400MT/s DDR5 memory, providing users with the ultimate computing performance improvement. Through the support of GPU accelerator cards and NVMe solid-state drives, it provides ultra-high computing performance and I/O acceleration.
R4700 G7 is optimized for scenarios:
High-density data center workloads - such as data center workloads of large and medium-sized enterprises and cloud service providers;
Dynamic workloads - such as databases, virtualization, private clouds and public clouds
Computation-intensive applications - such as big data, business intelligence, geological exploration and research
Low-latency and transaction applications - such as query and transaction systems in the financial services industry
H3C UniServer R4700 G7 server can support Microsoft® Windows® and Linux OS, as well as VMware and H3C CAS virtualization software.
1U Height
Up to 288 CPU cores
4 single–slot GPU
32 DDR5 Memory Slots
6400MT/s Speed
12 U.2 NVME SSD
4 PCI-E Standard Slots
2 onboard OCP3.0 Slots
1 dedicated RAID Mezz slot
Chassis Intrusion Detection
SGX 2.0
PFR 4.0
|
CPU |
2 Intel® Xeon® 6 Processors 144 Cores for each Processor and 330W power consumption |
|
Memory |
32 DDR5 RDIMM Slots, 6400 MT/s Data Rate, 8TB on 2 CPU Configuration with 256G DDR5 RDIMM |
|
Raid Controller |
Dedicated Mezz / Standard PCIe HBA Controller or Raid Controller |
|
FBWC |
8 GB Cache, support Supercapacitor protection |
|
Storage |
Front 10SFF bays, Rear 2SFF bays Front 4LFF bays SAS/SATA HDD/SSD Drives,12 U.2 NVMe Drives SATA/NVMe M.2 Kit, DSD module (2xSD card kit) |
|
Network |
1 Onboard 1Gbps Management Network Port 2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Standard Slots for 1/10/25/100GE Ethernet Adapter, IB card |
|
Expansion Slots |
4 PCIe Standard Slots, 2 Onboard OCP 3.0 Slots and 1 Dedicated Mezz Slot Up to 6 PCIe5.0 and 1 PCIe4.0 Slots CXL2.0 |
|
Ports |
Standard: 2 VGA Port (1 Front, 1 Rear), 4 USB Ports (1 Front, 2 Rear, 1 Internal), 1 Front Type-C port Optional: 1 Rear Management Port |
|
GPU |
4 Single-Slot GPU Modules |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
Management |
HDM Management System (with dedicated management port) H3C iFIST/UniSystem, LCD touchable model,64M Video Cache |
|
Security |
Intelligent Front Security Bezel Chassis Intrusion Detection TPM2.0 2FA for HDM Intel SGX2.0 and PFR4.0 |
|
Power supply |
1+1 Redundancy power supply Platinum 800W/1300W/1600W/2000W Optional Titanium power supply DC power supply 8 Hot swappable Redundant Fans |
|
Standards |
CE，UL etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions (H×W×D) |
1U Height Without a security bezel: 42.9 x434.6x777mm (1.68x17.11x30.59 in) With a security bezel: 42.9x434.6x805mm (1.68x17.11x31.7 in) |
*The Options may be different depending on the specific requirement, refer to related User Guide
