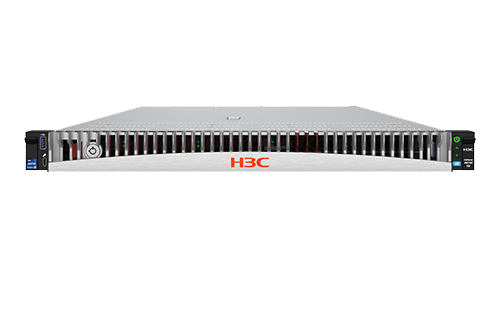

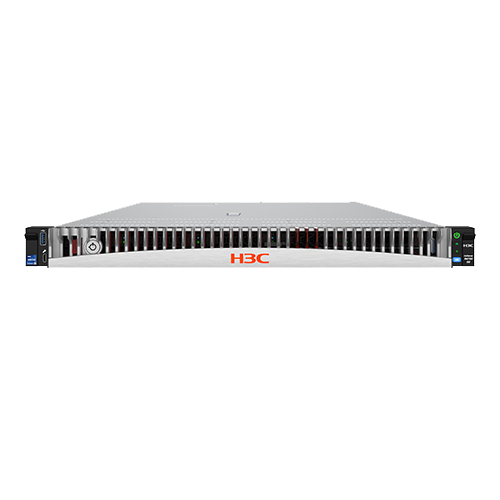

H3C UniServer R4700 G6 server is the latest generation H3C X86 1U 2-Socket Rack Server that can meet customers' higher requirements for data center space utilization and ROI.
R4700 G6 is featured by Intel's new-generation Eagle Stream platform.
R4700 G6 is suitable for most general computing scenarios, including cloud computing, virtualization, distributed storage, and enterprise resource planning.
For typical applications, such as the Internet, Carriers, enterprises, and governments, R4700 G6 can provide balanced computing performance, storage capacity, power saving, scalability, and reliability. For the management part, it becomes much easier for management and deployment.
H3C UniServer R4700 G6 incorporates the latest Intel® Xeon® Scalable family processor and uses 8-channel 5600MT/s DDR5 memory technology providing customers with higher computing performance as well as faster IO acceleration through support for GPU and NVMe SSDs.
High-density data center workloads – large enterprises and cloud service providers;
Dynamic workloads— databases, virtualization, private and public clouds
Compute-intensive applications – Big data, business intelligence, geological exploration and research
Low-latency and transactional applications – query and transaction systems in the financial services industry
The R4700 G6 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.
Low-latency and transactional applications – such as query and transaction systems in the financial services industry
Density Optimized Forerunner
1U Height
Up to 128 CPU cores
4 single-slot GPU
Flexible Expansion
32 DDR5 Memory Slots
4800MT/s Speed
12 U.2 NVME SSD
3 PCI-E 5.0 & 1 PCI-E 4.0 Slots
2 onboard OCP3.0 Slots
Multi-Tier Protection
Chassis Intrusion Detection
SGX 2.0
PFR 3.0
TPM 2.0
HDM Two-factor Authorization
|
CPU |
2 4th Generation Intel®Xeon® Sapphire Rapids / 5th Generation Intel®Xeon® Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption HBM technology |
|
Chipset |
Intel®C741 |
|
Memory |
32 DDR5 RDIMM Slots, 5600 MT/s Data Rate, 8TB on 2 CPU Configuration with 256G DDR5 RDIMM |
|
Raid Controller |
Dedicated PCIe HBA Controller or Raid Controller* Standard PCIe HBA Controller or Raid Controller |
|
FBWC |
8 GB Cache, support Supercapacitor protection |
|
Storage |
Front 10SFF bays, Rear 2SFF bays Front 4LFF bays SAS/SATA HDD/SSD Drives,12 U.2 NVMe Drives SATA/NVMe M.2 Kit, DSD module (2xSD card kit) |
|
Network |
1 Onboard 1Gbps Management Network Port 2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Standard Slots for 1/10/25/100GE Ethernet Adapter, IB card |
|
Expansion Slots |
4 PCIe Standard Slots (3 PCIe5.0 and 1 PCIe4.0) and 2 Onboard OCP 3.0 Slots CXL1.1 |
|
Ports |
Standard: 2 VGA Port (1 Front, 1 Rear), 2 USB 3.0 Rear Ports, 2 USB 2.0 Ports(1 Front, 1 Internal), 1 Front Type-C port Optional: 1 Rear Management Port |
|
GPU |
4 Single-Slot GPU Modules |
|
Optical Drive |
External Optical Disk Drive, Optional |
|
Management |
HDM Management System (with dedicated management port) H3C iFIST/UniSystem, LCD touchable model,64M Video Cache |
|
Security |
Intelligent Front Security Bezel* Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM Intel SGX2.0 and PFR3.0 |
|
Power supply |
1+1 Redundancy power supply Titanium 850W/1600W Platinum 800W/1300W/1600W/2000W DC power supply 8 Hot swappable Redundant Fans |
|
Standards |
CE，UL , FCC，VCCI，CB, etc. |
|
Operating temperature |
5°C to 45°C (41°F to 113°F) * |
|
Dimensions (H×W×D) |
1U Height Without a security bezel: 42.9 x434.6x777mm (1.68x17.11x30.59 in) With a security bezel: 42.9x434.6x805mm (1.68x17.11x31.7 in) |
*The Options may be different depending on the specific requirement, refer to related User Guid
