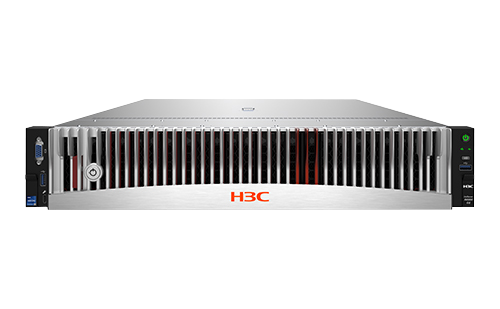

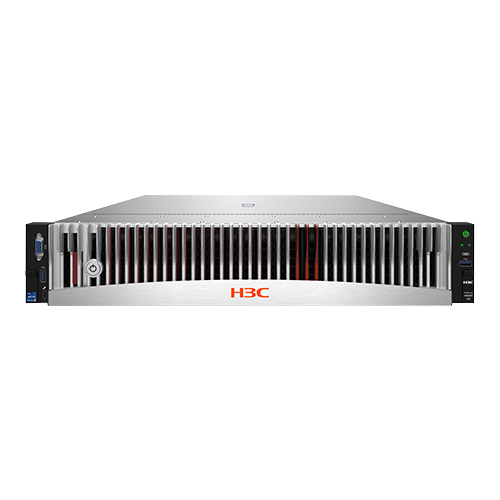

H3C UniServer R4900 G6 server is the latest generation H3C X86 2U 2-Socket Rack Server.

R4900 G6 is featured by Intel's new-generation Eagle Stream platform.

R4900 G6 is suitable for most general computing scenarios, including cloud computing,

virtualization, distributed storage, and enterprise resource planning.

For typical applications, such as the Internet, Carriers, enterprises, and governments, R4900 G6 can provide balanced computing performance, storage capacity, power saving, scalability, and reliability. For the management part, it becomes much easier for management and deployment.

H3C UniServer R4900 G6 incorporates the latest Inte®Xeon®Scalable family processor and uses 8 - channel 5600MT/s DDR5 memory technology, bringing up to 8TB* memory expansion and a 50% bandwidth increase. The new I/O structure is compatible with PCIe 5.0 standard with a 100% increased data bandwidth compared with the previous generation.

It achieves excellent scalability through local storage support of up to 10 standard PCIe slots and up to 29 drive slots. 96% power supply energy efficiency, and an operating temperature design of 5°C-45°C, provide users with higher energy efficiency returns.

R4900 G6 is optimized for scenarios:

Virtualization-multiple types of core workloads on a single server

Big Data-Manage exponential growth of structured, unstructured, and semi-structured data.

Storage intensive application-dismiss the performance bottleneck

Data warehouse/analysis-Query data on demand to help business decision

Customer relationship management (CRM)

Enterprise resource planning (ERP)

(Virtual Desktop Infrastructure) VDI

High-performance computing and deep learning-Provide sufficient GPUs to support machine learning and AI applications

The R4900 G6 supports Microsoft®Windows®and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.

  • Features
  •
  • Highly Efficient Standard Compute

    Up to 128 CPU cores

    Up to 4 dual-slot GPU

    Up to 8 single-slot GPU

    XPU

    Ultra I/O Structure

    32 DDR5 Memory Slots

    5600MT/s Speed

    24 U.2 NVME SSD

    6 PCI-E 5.0 & 4 PCI-E 4.0 Slots

    2 onboard OCP3.0 Slots

    Multi-Tier Protection

    Chassis Intrusion Detection

    SGX 2.0

    TPM 2.0

    HDM Two-factor Authorization

  •

CPU

2 4th Generation Intel®Xeon®Sapphire Rapids / 5th Generation Intel®Xeon®Emerald Rapids SP series

64 Cores for each Processor and 385W power consumption

Chipset

Inte®C741

Memory

32 DDR5 RDIMM Slots, 5600 MT/s Data Rate, 8TB* on 2 CPU Configuration

Additional 16 expansion memory slots via CXL1

Raid Controller

Dedicated PCIe HBA Controller or Raid Controller

Standard PCIe HBA Controller or Raid Controller

FBWC

8 GB Cache, support Supercapacitor protection



Storage

29 Drives

SAS/SATA HDD/SSD Drives,24 U.2 NVMe Drives,SATA/NVMe M.2 Kit, DSD Model (2 x SD card kit)

Front 12LFF bays, Rear 4LFF bays

Front 25SFF bays, Rear 4SFF bays

4 Drive Tri-Mode Backplane



Network

1 Onboard 1Gbps Management Network Port

2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs

PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter

Expansion Slots

10 PCIe Standard Slots (6 PCIe5.0 and 4 PCIe4.0) and 2 Onboard OCP 3.0 Slots

CXL1.1

Supports Full-OCP architecture and can support up to 8 OCP3.0 slots*

Ports

Standard: 1 VGA Rear Port, 3 USB 3.0 Ports (1 Front, 2 Rear), 1 USB 2.0 Internal Port, 1 Management Port

Optional: 1 Rear Management Port, Mounting Bracket Kit with Type-C port, 1 VGA port, 1 Management Port

GPU

8 Single-Slot or 4 Dual-Slot GPU Modules

Optical Drive

External Optical Disk Drive, Optional

Management

HDM Management System (with dedicated management port)

H3C iFIST/UniSystem, LCD touchable model,64M Video Cache



Security

Intelligent Front Security Bezel

Chassis Intrusion Detection

TPM2.0

2FA for HDM

Intel SGX2.0



Power supply

2 power supplies, support N+1 Redundancy

Titanium 850W/1600W

Platinum 800W/1300W/1600W/2000W/2400W/2700W

DC power supply

Hot swappable Redundant Fans

Standards

CE,UL , FCC,VCCI,CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)

Dimensions

(H×W×D)

2U Height

Without a security bezel: 87.5x445.4x780mm (3.44x17.54x30.7 in) With a security bezel: 87.5x445.4x808mm (3.44x17.54x31.8 in)

*The Options may be different depending on the specific requirement, refer to related User Guide
