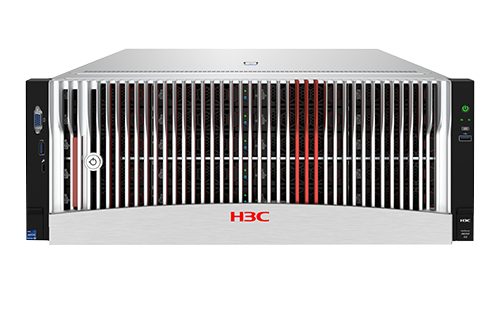

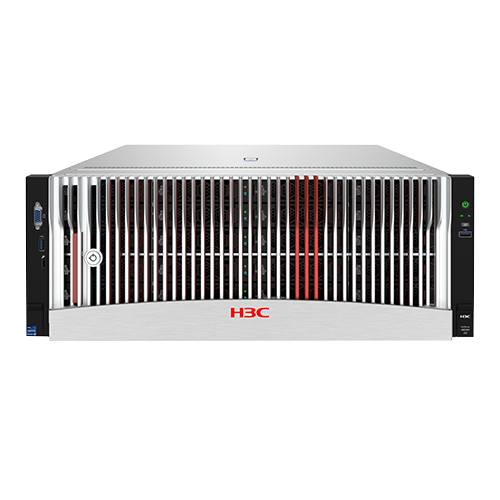

H3C UniServer R4300 G6

H3C UniServer
Contact Us

Product Details

With the continuous growth in the volume of enterprise data, how to meet the demand for efficient processing and secure storage of massive data for business has become one of the major problems disturbing IT managers. The new generation of H3C UniServer R4300 G6 is based on the newly Intel® Xeon® 4th/5th Generation Scalable Processor Family, which can achieve 60% increase in the number of cores, and with the support of NVMe, EDSFF and new-generation enterprise GPUs, it can meet the comprehensive demands for high storage density, efficient data processing and linear expansion within 4U rack, which is especially suitable for distributed storage, big data and backup and archiving scenarios in the Government, Public Security, Carrier, Internet, Enterprise and other industries. Meanwhile, with the use of highly efficient energy-saving technology, it helps customers build green and low-carbon data centers.

Product Advantages

Highly efficient end-to-end I/O

H3C UniServer R4300 G6 supports eight-channel 5600MT/s DDR5 memory technology, which provides users with up to 1.75 times the memory bandwidth compared with the previous generation products; supports flexible collocation of SATA, SAS, NVMe and EDSFF, and cooperates with up to three high-performance storage control cards , to provide users with leading storage performance; the PCIe channel is upgraded from 4.0 to 5.0, and the bandwidth is doubled; through the PCIe 5.0 standard expansion slot, it supports up to 400Gb Ethernet cards and InfiniBand cards, with flexible and reliable I/O expansion, providing High-density, high-concurrency data services.

Intelligent-ready full lifecycle management

H3C intelligent management center can cover all aspects from server deployment, operation and maintenance, diagnosis to decommissioning, and provides five-dimensional intelligent management for data centers. The extreme out-of-band operating system is equipped with patented technology and agile stateless computing functions, which can improve the efficiency of business online and flow by 10 times; the newly evolved application tuning template can intelligently identify business loads and match the optimal configuration, thereby improving the overall machine 5% performance; with the support of AI technology, H3C server intelligent management engine can achieve a fault diagnosis accuracy of up to 95% and effectively reduce unplanned downtime by 40%. The convenient and efficient H3C intelligent management center will further enhance the server operation and maintenance management experience, helping data centers reduce costs and increase efficiency.

  • Features
  •
  • Outstanding storage capacity

    Up to 1PB raw capacity

    Up to 52 hard drives

    Up to 3 high-performance array cards



    Excellent Computing Performance

    2 x 4th/5th Gen Intel® Xeon® Scalable processors

    Up to 32 DDR5 5600MT/s memory

    Up to 2 double - width or 8 single-width GPUs



    High-efficiency, low-carbon energy conservation

    Intelligent dynamic energy

    saving of processor

    AI control of fan speed

    Power mode dynamic adjustment

  •
  • Specification



  • CPU

    2 4th Generation Intel®Xeon®Sapphire Rapids/5th Generation Intel®Xeon®Emerald Rapids SP series 64 Cores for each Processor and 350W power consumption

    Chipset

    Intel®C741

    Memory

    32×DDR5 RDIMMs (maximum)

    Up to 5600 MT/s Data Rate, Dual-socket processor with maximum capacity of 8TB*

    Storage controller

    Standard PCIe HBA Controller or Raid Controller NVMe RAID

    FBWC

    8 GB Cache, support Supercapacitor protection



    Storage

    Support SAS/SATA/NVMe U.2/EDSFF E1.S Drives

    Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF; Support internal 4LFF or 8SFF*; Optional 18 NVMe drives*

    Support 2 M.2 as boot disk



    Network

    1 x onboard 1 Gbps HDM management Ethernet port

    2 x OCP3.0 Ethernet adapter support NCSI function and hot-swap

    PCIe Standard Slots for 10/25/100/200Gb Ethernet Adapter or 100/200/400Gb InfiniBand card

    PCIe slots

    Up to 10 x PCIe standard slots, Supports PCIe 5.0, 2x OCP3.0 Slots

    Ports

    2 x VGA connector (Front and Rear) and serial port

    5 x USB connectors (2 at the front and 2 at the rear and 1 at the internal), 1 × Type C for HDM

    GPU

    Up to 2 double-width or 8 single-width GPUs*

    Optical drive

    External optical drive



    Management

    HDM Management System(with rear independent management Ethernet port and front dedicated Type C port) H3C iFIST/UniSystem

    U-Center data center management platform(Optional)



    Security

    Intelligent Front Security Bezel Support Chassis Intrusion Detection TPM2.0

    2FA



    Power supply and Cooling

    1+1 Redundancy power supply

    Optional Platinum-level l 800W/1300W/1600W/2000W/2400W/2700W

    -48V/336V DC power module

    Optional Titanium-level power supply

    Hot swappable redundant Fans

    Standards

    CE CB TUV etc.



    Operating temperature

    Operating temperature: 5°C to 40°C (41°F to 104°F)

    Storage Temperature: -40~85ºC (-41°F to 185°F)

    The maximum operating temperature varies by server configuration. For more information, see the technical documentation for

    the device

    Dimensions

    (H×W×D)

    4U Height

    Without a security bezel: 174.8×447×781 mm (6.88×17.60×30.75 in)

    With a security bezel: 174.8×447× 809 mm (6.88×17.60×31.85 in)



    * Terms and Conditions
    The options may be different depending on the specific requirement.Restrictions and limitations may apply.To confirm availability,refer to related user guide or visit H3C website https://www.h3c.com/en/home/htb/
