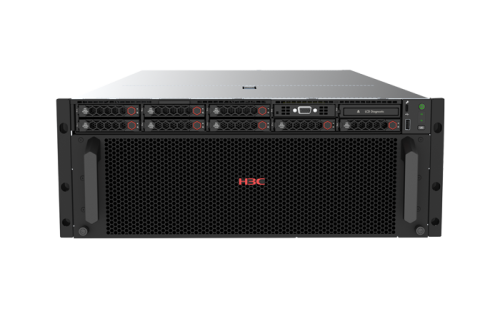

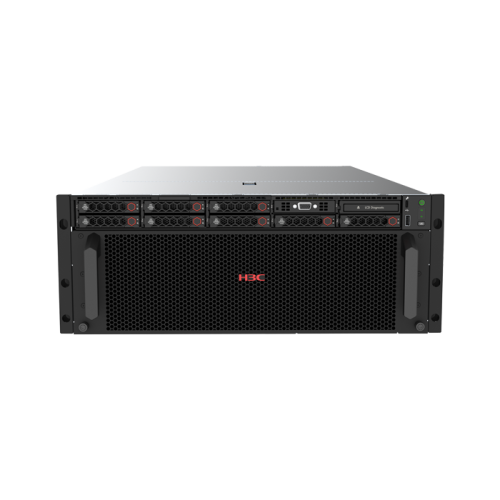

With the continuous advancement of enterprise digitization, data has become the most valuable production data of enterprises. Faced with the increasingly growing amount of data, are you troubled by insufficient data storage space or high data storage costs? The new generation of future-oriented storage-optimized server R4500 G6 independently developed by H3C will assistant you on your digital transformation journey with its leading storage capabilities and lower unit space purchase costs! H3C UniServer R4500 G6 is based on the Intel Xeon 4th/5th generation scalable processor family, which can achieve up to a 60% increase in core count compared to the 3rd-generation processors. It supports the expansion capability of 60 3.5-inch hard drives in a 4U space, while also supporting high-performance NVMe storage acceleration to meet the comprehensive needs of massive data storage, efficient data processing, and flexible expansion. It can be applied to distributed storage, big data, and backup and archiving scenarios in industries such as Government, Carriers, Internet, and Enterprises.

Benefits

End-to-end I/O balancing without -bottlenecks

The H3C UniServer R4500 G6 supports eight channels of 5600MT/s DDR5 memory ¬compared to the previous generation; Supports flexible combinations of SATA, SAS, and NVMe, with up to three high-performance storage control cards, fully unleashing storage performance; Supports cache pools composed of NVMe high-speed solid-state drives, providing high-performance I/O even in massive storage scenarios; Through PCIe 5.0 standard expansion slots, it supports Ethernet adapters and InfiniBand cards with speeds of up to 400Gb, providing high-density, high-concurrency data services with flexible and reliable I/O expansion.

Intelligent lifecycle management(LCM)

H3C Intelligent Management Center covers all aspects from server deployment, operation and maintenance, diagnosis to retirement, providing five-dimensional intelligent management for data centers. The patented technology for ultra-fast out-of-band operating system installation and agile stateless computing function can improve business online and mobility efficiency by 10 times; the newly evolved application tuning template can intelligently identify business loads, match the best configuration, and thereby improve the overall system performance by 5%; with the support of AI technology, H3C server intelligent management engine can achieve up to 95% accuracy in fault diagnosis and effectively reduce 40% unplanned downtime. The convenient and efficient H3C Intelligent Management Center will further enhance the server operation and maintenance experience, helping data centers reduce costs and increase efficiency.

Leading storage capacity

Up to 1.4PB raw capacity

Up to 60 3.5-inch hard drives within 4U space

Up to 3 high-performance storage control cards

Excellent computing performance

2 Intel®Xeon®4th/5th Generation Scalable Processors

32 DDR5 5600MT/s memory

Support enterprise-class GPU, Empower AI scenarios*

Reliable overall system with ingenuity

Innovative memory reinforcement technology, reduces unexpected downtime by 40%

Dual-plane independent heat dissipation for computing and storage

9 Intensity Seismic Design

  • Specification
  •
  • CPU

    2 4th Generation Intel®Xeon®Sapphire Rapids/5th Generation Intel®Xeon®Emerald Rapids SP series

    64 Cores for each Processor and 385W power consumption

    Chipset

    Intel®C741

    Memory

    32×DDR5 RDIMMs (maximum)

    Up to 5600 MT/s Data Rate

    Storage controller

    Standard PCIe HBA Controller or Raid Controller

    Supports NVMe RAID

    FBWC

    8 GB Cache, support Supercapacitor protection

    Storage

    Supports SAS/SATA/NVMe U.2

    60LFF+8SFF/2SFF; optional support for 12SFF and 12 NVMe SSD*

    Supports 2 M.2 or Micro SD as boot disk

    Network

    1×onboard 1 Gbps HDM management Ethernet port

    2×OCP3.0 Ethernet adapter support NCSI function and hot-swap

    PCIe Standard Slots for 1G/10G/25G/100G/200Gb/400G Ethernet Adapter or 100/200/400Gb InfiniBand card

    PCIe slots

    Up to 6 x PCIe standard slots (5 x PCIe 5.0, 1×PCIe 4.0), 2x OCP3.0 Slots

    Ports

    Standard 1 VGA connector (optional 2, 1 front, 1 rear) and optional 1 serial port,

    4×USB connectors (1 front, 2 rear, 1 internal), 1×Type C (HDM dedicated)

    Optical drive

    External USB optical drive

    Management

    HDM Management System (with rear independent management Ethernet port and front dedicated Type C port); H3C UniSystem

    LCD touchable model (Optional)

    U-Center data center management platform (Optional)

    Security

    Intelligent Front Security Bezel Support Chassis Intrusion Detection

    TPM2.0

    2FA

    Power supply

    Redundancy power supply; 1300/1600/2000/2400W Hot swappable, supports 1+1 or 2+2 redundancy

    Standard 5 fans for storage unit, 8 fans for compute unit, Hot swappable N+1 redundant Fans

    Standards

    CE CB TUV etc.

    Operating temperature

    Operating temperature: 5~40ºC

    Storage Temperature: -40~70ºC

    The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device

    Dimensions

    (H×W×D)

    4U Height

    Chassis size (Without ears and security bezel) (length×width×height): 900mm×448mm×174.8mm

    [Note] *The current profile information is subject to the detailed product manual.
