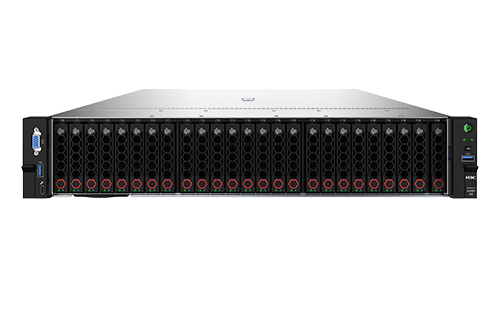

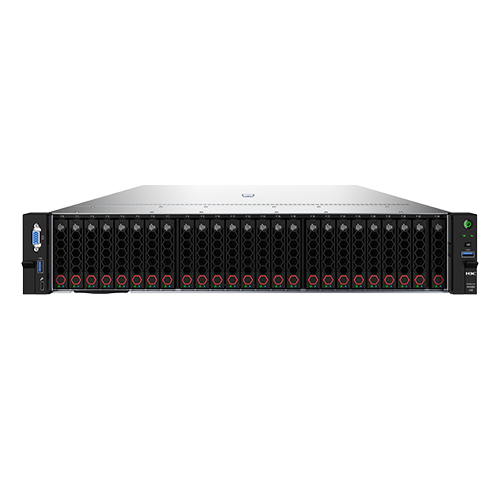

H3C UniServer R4950 G6 server is the latest generation H3C X86 2U 2-Socket Rack Server.

R4950 G6 is equipped with AMD EPYC 9004 series processors.

It has strong computing power, high reliability, strong flexibility and scalability, and easy management , easy deployment and other advantages, it can be widely used in virtualization, cloud computing, high-performance computing, artificial intelligence and other scenarios.

R4950 G6 is optimized for scenarios:

Support 2 AMD EPYC 9004 series processors, up to 192 physical cores, the number of cores and performance are increased by 50% and 90% respectively compared with the previous generation;

Support up to 24 DDR5 memory slots, the memory rate is up to 4800MT/s, which is 64% higher than the previous generation, and supports a maximum expandable capacity of 6TB;

Support up to 10 PCIe5.0 standard slots, 2 onboard OCP 3.0 slots and 1 optional OCP 3.0 slot, greatly improving system expansion capabilities;

Support smart array RAID controller, provide high-speed cache for data reading and writing, and support power-down data protection function;

Support up to 4 double-width or 10 single-width GPU cards to fully realize workload acceleration and facilitate machine learning and artificial intelligence applications;

Support TPM trusted platform module, providing advanced security encryption function;

Enhanced chip security encryption technology to realize memory encryption and virtual machine encryption, making data transmission more secure and reliable;

System management module HDM cooperates with FIST management software to monitor system operation status and provide remote management functions.

  • Features
  •
  • Highly Efficient Diversified Compute

    2 AMD EPYC 9004 CPU

    Up to 192 CPU cores

    Up to 4 dual-slot GPU

    XPU

    Ultra I/O Structure

    24 DDR5 Memory Slots

    4800MT/s Speed

    28 U.2 NVME SSD

    28 E3.S SSD

    40 E1.S SSD

    10 PCI-E 5.0 Slots

    Multi-Tier Protection

    Chassis Intrusion Detection

    SME

    SEV

    Multi-Level Security Model Builds Trusted Security System

  •

CPU

2 AMD EPYC 9004 series processors

96 Cores for each Processor and 400W power consumption

Memory

24 DDR5 RDIMM or 3DS RDIMM Slots, 4800 MT/s Data Rate,3 TB on 2 CPU Configuration

CXL1.1

Raid Controller

Dedicated PCIe HBA Controller or Raid Controller*

Standard PCIe HBA Controller or Raid Controller*

FBWC

8 GB Cache, support Supercapacitor protection*



Storage

41 Drives

SAS/SATA HDD/SSD Drives,28 U.2 NVMe Drives, 28 E3.S Drives,40 E1.S Drives

SATA/NVMe M.2 Kit, 2 DSD Model

Front 12LFF bays, internal 4LFF bays, Rear 4LFF bays*

Front 25SFF bays, internal 8SFF bays, Rear 8SFF bays*



Network

1 Onboard 1Gbps Management Network Port

2 Onboard OCP 3.0 Slots+1 Optional OCP 3.0 Slot for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs

PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter

Expansion Slots

10 PCIe5.0 Standard Slots

Ports

Front: 1 USB 3.2 Gen 1(Standard Right Rack Mounting Kit); 1 VGA, 1 USB 3.2 Gen 1, 1 Type C(Optional Left Rack Mounting Kit)

Internal: 1 USB 3.2 Gen 1

Rear: 1 VGA, 1 serial port (Optional), 2 USB 3.2 Gen 1, 1 HDM dedicated management port

GPU

10 Single-Slot or 4 Dual-Slot GPU Modules

Optical Drive

External Optical Disk Drive, Optional

Management

HDM Management System (with dedicated management port)

H3C iFIST/FIST, LCD touchable model,64M Video Cache



Security

Intelligent Front Security Bezel*

Chassis Intrusion Detection

TPM2.0

AMD Secure Processor(Root of Trust)

Power supply

Titanium 1600W

Platinum 1300W/1600W/2000W/2400W (1+1 redundancy)

Hot swappable Redundant Fans

Standards

CE,UL , FCC,VCCI,CB, etc.

Operating temperature

5°C to 45°C (41°F to 113°F)*

Dimensions

(H×W×D)

2U Height

Without a security bezel: 87.5x445.4x780 mm (3.44x17.54x30.7 in)

With a security bezel: 87.5x445.4x808 mm (3.44x17.54x31.8 in)

* The Options may be different depending on the specific requirement, refer to related User Guide
