New generation H3C UniServer R4900 G5 provide outstanding scalable capacity supporting up to 24 NVMe drives to enhance configuration flexibility for modern data centers

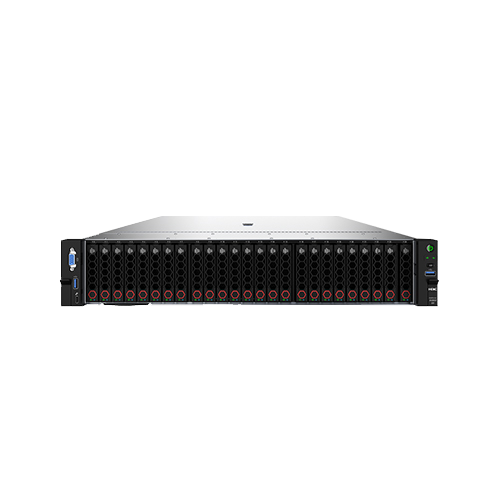

H3C UniServer R4900 G5 server is a H3C self-developed mainstream 2U rack server.

R4900 G5 utilizes the most recent 3rd Gen Intel®Xeon® Scalable processors and 8 channel DDR4 memory with 3200MT/s speed to strongly lift the bandwidth up to 60% compared with previous platform.

With 14 x PCIe 4.0 I/O slots(depending on model)and 2 xOCP 3.0 to reach excellent IO scalability.

Maximum 96% power efficiency and 5～45℃ operating temperature provide users a TCO returns in a greener data center.

R4900 G5 is optimized for scenarios:

Virtualization — Support multiple types of core workloads on a single server to simplify Infra-investment.

Big Data — Manage exponential growth of structured, unstructured, and semi-structured data.

Storage intensive application — dismiss the performance bottleneck

Data warehouse/analysis — Query data on demand to help service decision

Customer relationship management (CRM) — Help you to gain comprehensive insights into business data to improve customer satisfaction and loyalty

Enterprise resource planning (ERP) — Trust the R4900 G5 to help you manage services in real time

(Virtual Desktop Infrastructure)VDI —Deploy remote desktop services to provide your employees with the working flexibility anytime, anywhere

High-performance computing and deep learning — Provide sufficient GPUs to support machine learning and AI applications

Housing Data center graphics for high-density cloud gaming and media streaming

The R4900 G5 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.

• Features

• Industrial-leading performance improves data center productivity

  Support up to 80 cores and 8TB memory

  16 x Intel ® Optane™ DC Persistent Memory Module(PMem 200)

  AI-Optimized GPU

  Favorable Scalability and flexibility

  Support up to 29 Drives

  24 x NVME+M.2+MicroSD

  2 OCP3.0 slots

  Full life-cycle management to reduce TCO

  Industrial-standard OOB system-HDM

  FIST -batch job execution

  Two-factor authorization

•
• Specification

• Detailed Specification
  CPU	2 x 3rd generation Intel® Xeon® Ice Lake SP series (each processor up to 40 cores and maximum 270W power consumption)
  Chipset	Intel® C621A
  Memory	32 x DDR4 DIMM slots , maximum 8.0 TB Up to 3200 MT/s data transfer rate RDIMM Up to 16 Intel ® Optane™ DC Persistent Memory Module PMem 200 series ( Barlow Pass)
  Storage controller	Embedded RAID controller Standard PCIe HBA controller or storage controller, depending on model
  FBWC	8 GB DDR4 cache, depending on model, support supercapacitor protection
  Storage	Up to front 12LFF bays, Rear 4LFF/4SFF bays Up to front 25SFF bays, Rear 4LFF/4SFF bays Front/Rear SAS/SATA HDD/SSD NVMe Drives, maximum 24 x U.2 NVMe Drives SATA or PCIe M.2 SSDs, 2 x SD card kit , depending on model
  Network	1 x onboard 1 Gbps management network port 2 x OCP 3.0（x16）slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs PCIe Standard slots for 1/10/25/40/100/200GE/IB Ethernet adapter
  PCIe slots	14 x PCIe 4.0 standard slots, depending on model
  Ports	VGA ports (Front and Rear) and serial port (RJ-45) 6 x USB 3.0 ports (2 front, 2 rear, 2 internal) 1 dedicated management Type-C port
  GPU	14 x single-slot wide or 4 x double-slot wide GPU modules, depending on model
  Optical drive	External optical disk drive , optional
  Management	HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model
  Security	Intelligent Front Security Bezel Chassis Intrusion Detection TPM2.0 Silicon Root of Trust 2FA for HDM
  Power supply	1+1 Redundancy power supply Titanium 850W/1600W Platinum 550W/800W/850W/1300W/1600W/2000W/2400W DC power supply Hot swappable Redundant Fans
  Standards	CE，UL , FCC，VCCI，EAC, etc.
  Operating temperature	5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.
  Dimensions (H × W × D)	2U Height Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in) With a security bezel: 87.5 x 445.4 x 776 mm (3.44 x 17.54 x 30.55 in)

  *The options may be different depending on the specific requirement, refer to related user guide for detail
