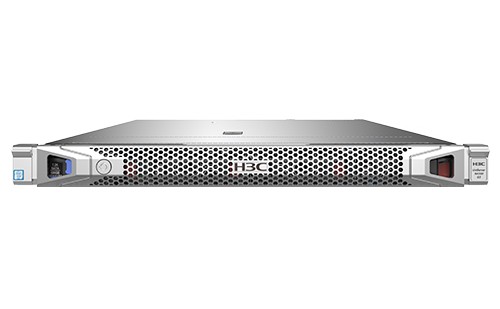

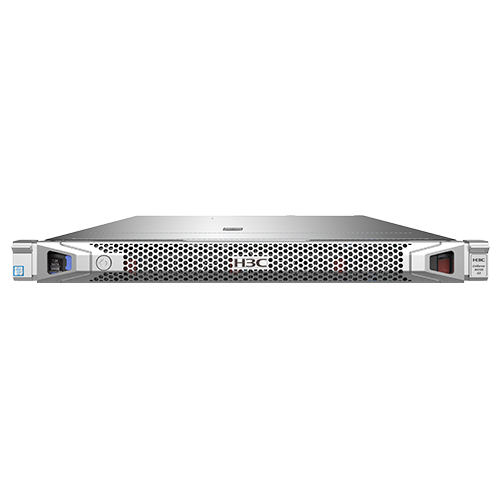

H3C UniServer R4700 G3

H3C UniServer
Contact Us

Product Details

  • Handle high-density workloads with excellent performance and extraordinary efficiency
  •
  • Features
  •

Excellent performance improves data center productivity

Support the most up-to-date tech platforms and massive memory expansion

Support high-performance GPU acceleration

Scalable configuration protects IT investment

Flexible subsystem selection

Modular design that allows phased investment

Comprehensive security protection

Indigenous chip-level encryption

Security bezel, chassis lock, and chassis intrusion monitoring

  •
  • Specification
  •
  • Computing

    2 × Intel® Xeon® Scalable processors

    (Up to 28 cores and maximum 205 W power consumption)

    Memory

    3.0 TB (maximum)

    24 × DDR4 DIMMs

    (Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM)

    (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)

    Storage controller

    Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

    Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional)

    Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, and 1E) (Optional)

    Standard PCIe HBA cards and storage controllers (Optional)

    FBWC

    4 GB DDR4-2133MHz

    Storage

    Front 4LFF + rear 2SFF or front 10SFF + rear 2SFF (supports SAS/SATA HDD/SSD and up to 8 front NVMe drives)

    480 GB SATA M.2 SSDs

    Network

    1 × onboard 1 Gbps management network port

    1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports (Optional)

    1 × PCIe Ethernet adapters (Optional)

    PCIe slots

    5 × PCIe 3.0 slots (two standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)

    Ports

    Front VGA connector (Optional)

    Rear VGA connector and serial port

    4 × USB 3.0 connectors (two at the rear and two in the server)

    2 × MicroSD slots (Optional)

    GPU

    2 × single-slot wide GPU modules

    Optical drive

    External optical drive

    Only the 4LFF and 8SFF drive models support built-in optical drives

    Management

    HDM (with dedicated management port) and H3C FIST

    Power supply and ventilation

    Platinum 550W/800W/850W or 800W –48V DC power supplies (1+1 redundancy)

    Hot swappable fans (supports redundancy)

    Standards

    CE,UL , FCC,VCCI,EAC, etc.

    Operating temperature

    5°C to 45°C (41°F to 113°F)

    The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.

    Dimensions (H × W × D)

    Without a security bezel: 42.88 × 434.59 × 768.3 mm (1.69 × 17.11 × 30.25 in)

    With a security bezel: 42.88 × 434.59 × 780.02 mm (1.69 × 17.11 × 30.71 in)

    *Configuration may vary, refer to related user guide for more detail
