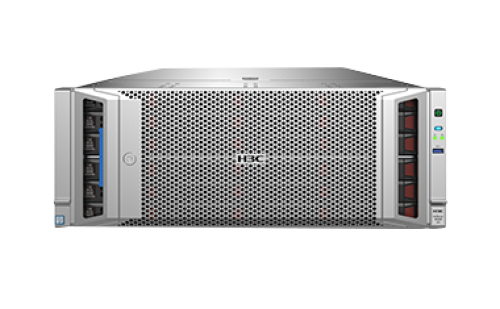

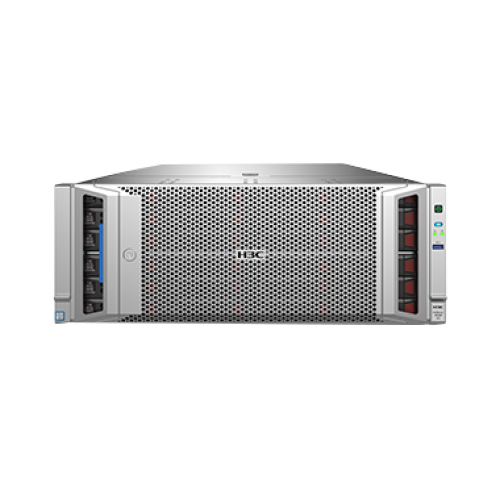

H3C UniServer R4300 G3

H3C UniServer
Contact Us

Product Details

  • Excellently handling of data-intensive workloads with flexible expansion
  • Features

Excellent performance improves data center productivity

Support the most recent Intel®Xeon®Scalable

Processors

Up to 24 DDR4 2933MT/s DIMMs

Up to 2 double-width or 8 single-width GPUs to meet AI Business needs

Optane and NVMe acceleration

Industrial-leading massive storage capacity

Up to 52 drives

Flexible disk combination

M.2/SATA/SAS/NVMe

NVDIMM/DCPMM and Raid controller to ensure data integrity

Scalable configuration protects IT investment

Linear expansion for SDS

Up to 10 PCIe 3.0 slots

  •
  • Specification
  • Computing

    2 × Intel® Xeon® Scalable processors (Up to 28 cores and maximum 165 W power consumption)

    Chipset

    Intel® C621

    Memory

    24 × DDR4 DIMMs 3.0 TB (maximum)

    (Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM)

    (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)

    Optional NVDIMM*

    Storage controller

    Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

    Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional)

    Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, 1E and Simple Volume) (Optional)

    Standard PCIe HBA cards and storage controllers (Optional)

    NVMe RAID

    FBWC

    4 GB cache

    Storage

    Support SAS/SATA/NVMe U.2 Drives

    Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF;Support internal 4LFF* or 8SFF*;Optional 10 NVMe drives

    Support SATA M.2 optional part

    Network

    1 × onboard 1 Gbps HDM management Ethernet port and 2 x GE Ethernet port

    1 × FLOM Ethernet adapter that provides 4 × 1GE copper ports ; 2 × 10GE fiber ports; FLOM support NCSI function

    PCIe 3.0 Ethernet adapters (Optional), Support 10G,25G,100G LAN Card or 56G/100G IB card

    PCIe slots

    10 × PCIe 3.0 slots (8 standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)

    Ports

    Rear VGA connector and serial port

    3 × USB 3.0 connectors (two at the rear and one at the front)

    GPU

    8 × single-slot wide or 2 x double-slot GPU modules*

    Optical drive

    External optical drive

    Management

    HDM (with dedicated management port) and H3C FIST

    Security

    Support Chassis Intrusion Detection

    TPM2.0

    Power supply and Cooling

    2 x 550W/850W/1300W or 800W –48V DC power supplies (1+1 Redundant Power Supply)

    80Plus certification, up to 94% energy conversion efficiency

    Hot swappable fans (supports 4+1 Redundancy)

    Standards

    CE,UL , FCC,VCCI,EAC, etc.

    Operating temperature

    5°C to 40°C (41°F to 104°F)

    Storage Temperature:-40~85ºC(-41°F to 185°F)

    The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device.

    Dimensions (H × W × D)

    4U Height

    Without a security bezel: 174.8 × 447 × 782 mm (6.88 × 17.60 × 30.79 in)

    With a security bezel: 174.8 × 447 × 804 mm (6.88 × 17.60 × 30.79 in)

    *Configuration may vary, refer to related user guide for more details
