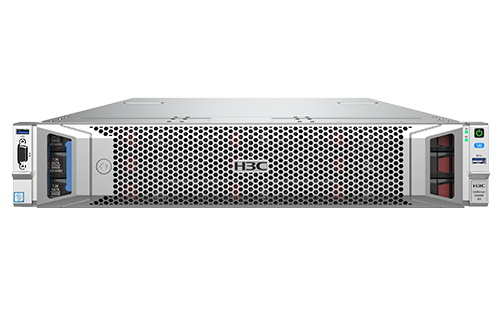

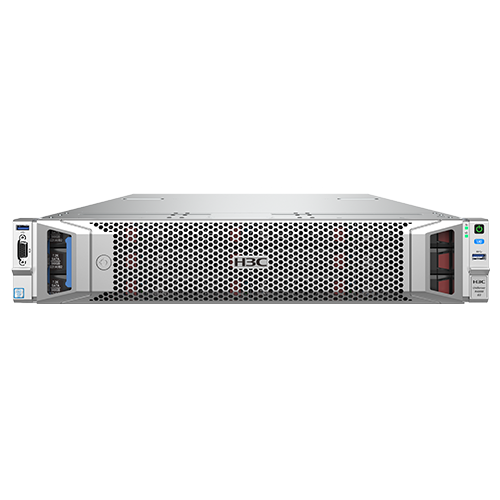

H3C UniServer R4900 G3

H3C UniServer
Contact Us

Product Details

Designed for the workloads of modern data centers

Excellent performance improves data center productivity

Support the most up-to-date tech platforms and massive memory expansion

Support high-performance GPU acceleration

Scalable configuration protects IT investment

Flexible subsystem selection

Modular design that allows phased investment

Comprehensive security protection

Indigenous chip-level encryption

Security bezel, chassis lock, and chassis intrusion monitoring

You can use the R4900 G3 to support below services:

Virtualization — Support multiple types of workloads on a single server to save space

Big Data — Manage exponential growth of structured, unstructured, and semi-structured data.

Applications centered on storage — Remove I/O bottleneck and improve performance

Data warehouse/analysis — Query data on demand to help service decision

Customer relationship management (CRM) — Help you to gain comprehensive insights into business data to improve customer satisfaction and loyalty

Enterprise resource planning (ERP) — Trust the R4900 G3 to help you manage services in real time

Virtual desktop infrastructure (VDI) — Deploys remote desktop service to bring great office agility and enable telecommuting with any device anywhere anytime

High-performance computing and deep learning — Provide 3 dual-slot wide GPU modules in a 2U footprint, meeting the requirements of machine learning and AI applications

The R4900 G3 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.



  • Specification
  •
  • Computing

    2 ×2nd Generation Intel Xeon Scalable Processors (CLX&CLX-R)

    (Up to 28 cores and maximum 205 W power consumption)

    Memory

    3.0 TB (maximum)

    24 × DDR4 DIMMs

    (Up to 2933 MT/s data transfer rate and support of both RDIMM and LRDIMM)

    (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)

    Storage controller

    Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

    Standard PCIe HBA cards and storage controllers (Optional)

    FBWC

    8 GB DDR4-2133MHz

    Storage

    Front 12LFF + rear 4LFF and 4SFF or front 25SFF + rear 2SFF

    supports SAS/SATA HDD/SSD,

    supports up to 24 NVMe drives

    480 GB SATA M.2 SSDs (Optional)

    SD cards

    Network

    1 × onboard 1 Gbps management network port

    1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports

    1 × PCIe Ethernet adapters (Optional)

    PCIe slots

    10 × PCIe 3.0 slots (eight standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)

    Ports

    Front VGA connector (Optional)

    Rear VGA connector and serial port

    5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server)

    1 × USB 2.0 connector (Optional)

    2 × MicroSD slots (Optional)

    GPU

    3 × dual-slot wide GPU modules or 4 × single-slot wide GPU modules

    Optical drive

    External optical drive

    Only the 8SFF drive models support built-in optical drives

    Management

    HDM (with dedicated management port) and H3C FIST

    Security

    Support Chassis Intrusion Detection,TPM2.0

    Power supply & ventilation

    Platinum 550W/800W/850W/1300W/1600W, or 800W –48V DC power supplies (1+1 redundancy)

    Hot swappable fans (supports redundancy)

    Standards

    CE,UL , FCC,VCCI,EAC, etc.

    Operating temperature

    5°C to 50°C (41°F to 122°F)

    The maximum operating temperature varies by server configuration.

    Dimensions (H × W × D)

    Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in)

    With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in)

    *Configuration may vary, refer to related user guide for more details
