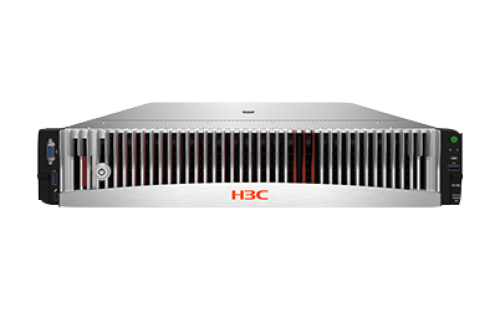

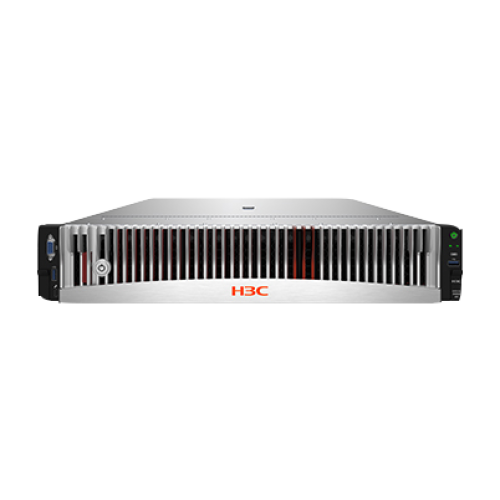

The Best virtualized resource platform
Support up to 128 cores and 4 TB memory
Optimized for Virtualization Platform
Hi-performance and flexible computing
AMD EPYC Processor
Up to 10 x PCIe 4.0/3.0 standard slots
2 x OCP3.0 slots
Full-lifecycle Use Experience
Virtualized Unified Management
Simplified Deployment and Maintenance
CPU |
2 x Rome/Milan AMD EYPC TM series (each processor up to 64 cores and maximum 280W power consumption) |
Memory |
32 x DDR4 DIMM slots , maximum 4.0 TB Up to 3200 MT/s data transfer rate,support RDIMM or LRDIMM |
Storage controller |
Standard PCIe HBA or RAID controller (SATA RAID 0, 1, 5, and 10), depending on model |
FBWC |
4 GB DDR4 cache, depending on model, support supercapacitor protection |
Storage |
Up to front 12LFF bays, Rear 4LFF+2SFF bays* Up to front 25SFF bays, Rear 2LFF+4SFF bays* Front SAS/SATA HDD/SSD/NVMe Drives, maximum 24 x U.2 NVMe Drives PCIe or SATA 2280/22110 M.2 SSDs, 2 x SD card kit , depending on model |
Network |
2 x OCP 3.0 slots for 4 x 1GE or 2 x 10GE or 2 x 25GE NICs PCIe Standard slots for 1/10/25GE/IB Ethernet adapter |
PCIe slots |
10 x PCIe 4.0/3.0 standard slots |
Ports |
VGA ports (Front and Rear) and serial port (RJ-45) 6 x USB 3.0 ports (front USB3.0+USB2.0, rear 2 x USB3.0, internal 2 x USB3.0) 1 dedicated management Type-C port 1 x onboard 1 Gbps management network port |
GPU |
6 x single-slot wide or 2 x double-slot wide GPU modules |
Optical drive |
External optical disk drive , optional |
Management |
HDM OOB system (with dedicated management port) and H3C iFIST/FIST, LCD touchable smart model |
Security |
Chassis Intrusion Detection TCM/TPM2.0 |
Power supply |
2 x Platinum 550W/800W/850W/1200/1600W/2000W (1+1 redundancy) ,depending on model Hot swappable redundant fans |
Standards |
CE,CCC, etc. |
Operating temperature |
5°C to 45°C (41°F to 113°F) The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the device. |
Dimensions (H × W × D) |
2U Height Without a security bezel: 87.5 x 445.4 x 748 mm (3.44 x 17.54 x 29.45 in) With a security bezel: 87.5 x 445.4 x 775.5 mm (3.44 x 17.54 x 30.53 in) |
* See related manual for detailed configuration
