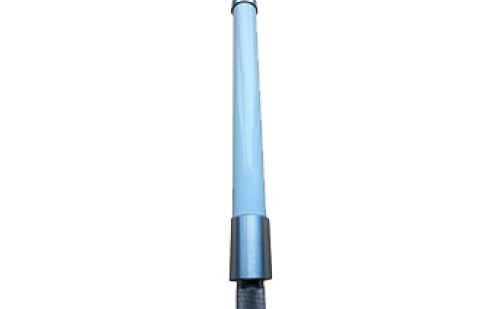

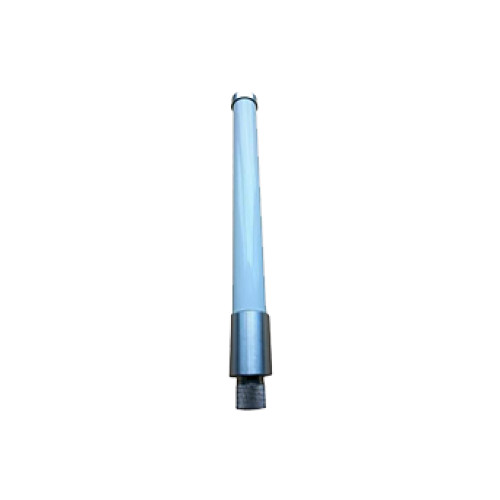

The ANT-2547V dual-band antenna is used outdoors. It uses a type N male connector for connecting to a device.
|
Item
|
Specification
|
|
Frequency range
|
· 2400 MHz to 2500 MHz
· 5150 MHz to 5850 MHz
|
|
Polarization
|
Vertical
|
|
Gain
|
4/7 dBi
|
|
Horizontal beamwidth (HBW)
|
360 degrees
|
|
Vertical beamwidth (VBW)
|
35/17 degrees
|
|
Horizontal out of roundness (dB)
|
± 1.5 dB
|
|
Impedance
|
50 Ω
|
|
Voltage standing wave ratio (VSWR)
|
≤ 2.0
|
|
Maximum power
|
100 W
|
|
Connector
|
Type N male connector
|
|
Connector position
|
Bottom
|
|
Size (diameter × length)
|
28 × 400 mm (1.10 × 15.75 in)
|
|
Antenna weight
|
0.2 kg (0.44 lb)
|
|
Radome material
|
Fiberglass
|
|
Radome color
|
White
|
|
Operating temperature
|
–40°C to +70°C (–40°F to +158°F)
|
|
Operating humidity
|
5 % to 95%
|
|
Waterproof level
|
IP66
|
|
Wind resistance
|
35 m/s (114.8 ft/s)
|
|
Salt spray resistance
|
Neutral salt spray resistance for 96 hours (GB/T 2423.17-2008)
|
|
Application scenario
|
Outdoor
|
|
Installation method
|
Direct mounting
|
