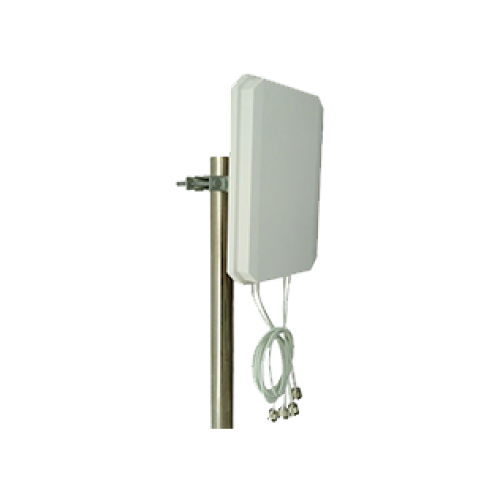

The ANT-2510P-M4 dual-band directional antenna is used outdoors. It uses a type N male connector for connecting to a device.
Item
|
Specification
|
Frequency range
|
· 2400 MHz to 2500 MHz
· 4900 MHz to 5950 MHz
|
Polarization
|
Horizontal/Vertical
|
Gain
|
10/10 dBi
|
Horizontal beamwidth (HBM)
|
40/40 degrees
|
Vertical beamwidth (VBM)
|
40/40 degrees
|
Front-to-back ratio (FBR)
|
≥ 20/25 dB
|
Port-to-port isolation
|
≥ 24 dB
|
Impedance
|
50 Ω
|
Voltage standing wave ratio (VSWR)
|
≤ 2.0
|
Maximum power
|
20 W
|
Connectors
|
4 × type N male connectors
|
Cable length
|
0.9 m (2.95 ft)
|
Connector position
|
Bottom
|
Dimensions (H × W × D)
|
340 × 200 × 45 mm (13.39 × 7.87 × 1.77 in)
|
Antenna weight
|
1.1 kg (2.43 lb)
|
Bracket weight
|
1.05 kg (2.31 lb)
|
Color
|
White
|
Application scenario
|
Outdoor
|
Operating temperature
|
–40°C to +70°C (–40°F to +158°F)
|
Storage temperature
|
–50°C to +85°C (–58°F to +185°F)
|
Wind resistance
|
35 m/s (114.8 ft/s)
|
Installation method
|
Pole mounting, with the pole diameter in the range of 50 to 85 mm (1.97 to 3.35 in)
|
