All series support "Ethernet port + optical port" combination, adapting to various scenarios of networking needs, convenient and flexible networking;
All ports are equipped with line speed forwarding capability to meet the needs of different users.
Supports broadcast storm suppression to prevent excessive broadcast packets from being sent from other ports of the switch, which in turn affects the network.
Supports black hole MAC address configuration to filter out illegal users and safeguard network security.
Cloudnet and intelligent Web management functions fit smart and easy managing demand , the page is simple and easy to operate, reducing operation and maintenance costs.
Supports automatically obtaining IP address from gateway and connecting to external network without configuration.
The S1600V2 series switch implements a variety of green energy saving features, Energy-saving design significantly reduces the power consumption and failure points of the equipment, and at the same time reduces radiation to meet the radiation standards of household appliances, which is harmless to the human body;
The entire product meets the EU RoHS standards for environmental protection and safety of materials.
Specification
| Picture | BOM | Model | Description |
| L2 Cloud Smart Managed Switch | |||
 |

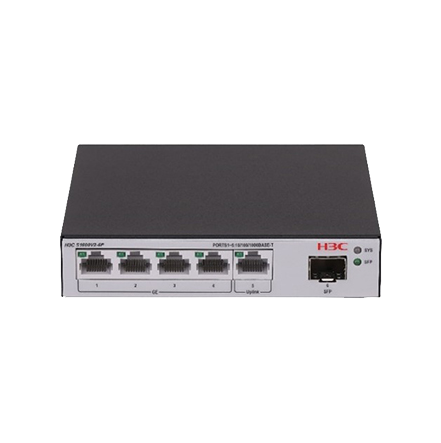

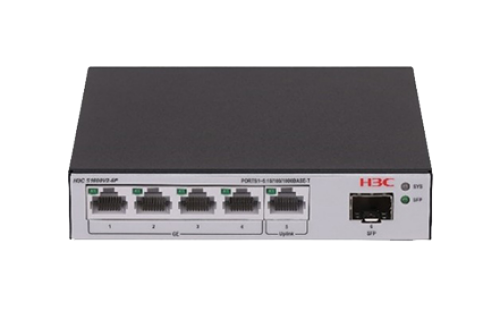

9801A67N | LS-1600V2-6P-GL | H3C S1600V2-6P L2 Ethernet Switch with 5*10/100/1000BASE-T Ports and 1*100M/1G SFP Port, (AC) |
 |
9801A68X | LS-1600V2-6P-HPWR-GL | H3C S1600V2-6P-HPWR L2 Ethernet Switch with 5*10/100/1000BASE-T Ports (4 PoE+ Ports Included) and 1*100M/1G SFP Port, (AC) |
 |
9801A67P | LS-1600V2-10P-GL | H3C S1600V2-10P L2 Ethernet Switch with 9*10/100/1000BASE-T Ports and 1*100M/1G SFP Port, (AC) |
 |
9801A67W | LS-1600V2-10P-HPWR-GL | H3C S1600V2-10P-HPWR L2 Ethernet Switch with 9*10/100/1000BASE-T Ports (8 PoE+ Ports Included) and 1*100M/1G SFP Port, (AC) |
 |
9801A682 | LS-1600V2-18P-GL | H3C S1600V2-18P L2 Ethernet Switch with 16*10/100/1000BASE-T Ports and 2*100M/1G SFP Ports, (AC) |
 |
9801A67U | LS-1600V2-18P-HPWR-GL | H3C S1600V2-18P-HPWR L2 Ethernet Switch with 16*10/100/1000BASE-T PoE+ Ports and 2*100M/1G SFP Ports, (AC) |
 |
9801A67V | LS-1600V2-26P-GL | H3C S1600V2-26P L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 2*100M/1G SFP Ports, (AC) |
 |
9801A67Q | LS-1600V2-26P-HPWR-GL | H3C S1600V2-26P-HPWR L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports and 2*100M/1G SFP Ports, (AC) |
| |
9801A67X | LS-1600V2-26S-GL | H3C S1600V2-26S L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 2*1G/10G SFP+ Ports, (AC) |
 |
9801A67Y | LS-1600V2-26S-HPWR-GL | H3C S1600V2-26S-HPWR L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports and 2*1G/10G SFP+ Ports, (AC) |
