H3C 802.11ac Wave2 series outdoor AP is a new generation smart outdoor AP with large RF radiated power. It complies with 802.11ac Wave2 standards and greatly enhances customer experience in multi-users access scenario. H3C 802.11ac Wave2 series outdoor AP includes two models, WA5630X and WA5320X. WA5630Xs triple band technology is well suited to high-density environment.
H3C 802.11ac Wave2 series outdoor AP is integrated with smart RF optimizing technology. Maximum transmit power of a single RF up to 500mW. It can address outdoor WLAN coverage problems and enhance accuracy and stability. Professional unibody design, IP68 protection level and wide-temperature-range resistance make it convenient for outdoor installation and debugging. It is widely deployed for professional smart coverage in outdoor scenarios such as wireless city and scenic spot.

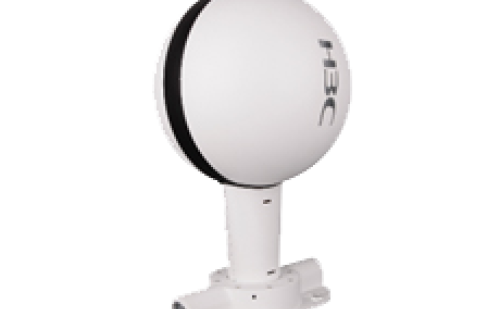

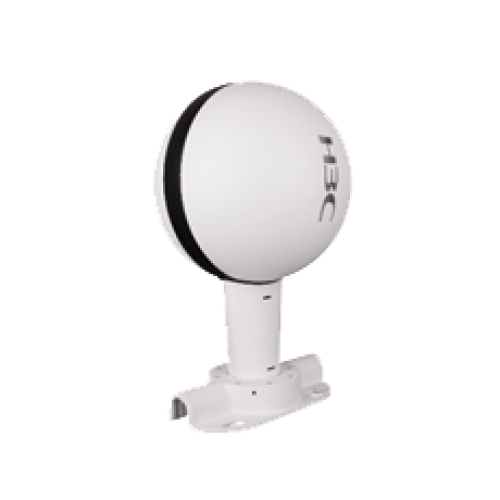

H3C 802.11ac Wave2 series outdoor AP with its ball-shape design promotes city image and addresses appearance demand in wireless city and scenic spot.
With the growing demand and popularity of outdoor wireless coverage usage, required number of device ports has become a challenge as well as the keeping the neatness and convenience. . H3C 802.11ac Wave2 series outdoor AP uses 32-pin integrated cable which integrates Ethernet port and console port and shown as one port. This greatly simplifies installation and improves appearance
H3C 802.11ac Wave2 series outdoor AP with built-in Bluetooth supports Console from 10 meters away and can avoid extra labor cost on maintenance or troubleshooting. It also supports iBeacon shake.
H3C 802.11ac Wave2 series outdoor AP adopts industry-first map-based maintenance concept. Customers could see real-time status, such as wireless coverage and network construction. It converge wireless coverage and population flow with map and makes data more visible and practical.
H3C 802.11ac Wave2 series outdoor AP supports IoT expansion of standard protocols such as ZigBee and RFID, which enables management on infrastructure in wireless city and scenic spots such as air sensor, PM2.5 sensor, dustbin and IoT devices in campus such as writ trap, IC card and more.
H3C 802.11ac Wave2 series outdoor AP complies with 802.11ac Wave2 standards. WA5320X features maximum two streams 867Mbps wireless transfer rate for 5Ghz and total 1267Mbps speed of combining 2.5Ghz and 5Ghz while WA5630X with triple band design features maximum four streams 1733Mbps wireless transfer rate for 5Ghz and total 3Gbps speed of combining 2.5Ghz and 5Ghz. With the smart adaptive antenna array technology, it can increase the scope of coverage; improve access density and operation stability; provide a better mobile cloud access and wireless network total cost of ownership (TCO).
H3C 802.11ac Wave2 series outdoor AP supports Multi-user MIMO (MU-MIMO) technology, MU-MIMO has become the quintessential feature for wave2 AP. MU-MIMO technology which allows the AP to transmit data to multiple terminal devices simultaneously. According to terminal stream quantity, H3C 802.11ac Wave2 series outdoor AP can concurrently transmit data to multiple terminals with single stream. This improves data transmission efficiency, raises the number of users accessing the AP and provides better user experience.
H3C 802.11ac Wave2 series outdoor AP runs in Fit mode and forwards packets through a wide area network (WAN), they are usually deployed as data access devices in branch offices, while wireless Access Controllers (ACs) are deployed in headquarter. All user data is sent from APs to AC, and centrally forwarded by the AC. H3C 802.11ac Wave2 series outdoor AP can convert wireless packets to wired packets avoiding data packets sent through AC but forwarded locally, which significantly saves the WAN link bandwidth.
H3C 802.11ac Wave2 series outdoor AP is fully compliant with IPv6 and implements a dual IPv4/IPv6 protocol stacks. Existing IPv4 and IPv6 wired networks can run in parallel and work seamlessly to register WLAN with WX series ACs, so that it never runs as an information silo.
End user Admission Domination (EAD) integrates network access and endpoint security products, which ensure only complied wireless clients with mandated enterprise security policies, can access the network, reducing threat levels from infected wireless clients and raising the bar and improving the overall security of the wireless network. When working with a security policy server, it can remind users, isolate and boot them off the network when their systems are infected or not patched properly.
H3C 802.11ac Wave2 series outdoor AP can work as a remote probing and analysis sensor device. It can intercept WiFi packets nearby and save to a local device in real-time for troubleshooting and optimization analysis. Remote probing can conduct a non-convergent image for working channels, or a polling of all channels to satisfy wireless network monitoring and maintenance requirements.
H3C 802.11ac Wave2 series outdoor AP supports RF Optimizing Engine (ROE), which effectively increases the number of concurrent sessions in middle to high-density access, accomplishes streaming media application acceleration and QoS through character and protocol based RF optimization. Features include multi-user fairness, mixed access fairness, interference filtering, speed optimization, spectrum guide, IPv4/IPv6 multicast signal boost, per-packet power control and intelligent bandwidth guarantee.
H3C 802.11ac Wave2 series outdoor AP comes with intelligent load balancing, which spreads the workload according to the number of concurrent users and traffic. If a new incoming user breaks the preset loading limit, AP will check the location of the wireless client in real-time, determine if nearby APs with smaller workload can provide access, and deny the user access only when such AP exists. What sets H3C intelligent load balancing apart from existing load balancing schemes is that it kicks in only if the user is located in an area with overlapping AP coverage, and prevents loss of access when the workload limit is reached but no backup AP exists. This maximizes wireless network capacity while preventing any erratic behavior in load balancing.
H3C 802.11ac Wave2 series outdoor AP supports TR-069 which enables centralized management on distributed devices. TR-069 also known as “CPE WAN Management Protocol “is a technical specification of the DSL Forum (www.dslforum.org).
H3C Intelligent Management Center (iMC) Wireless Service Manager (WSM) provides unified management of wired and wireless networks, adding network management functions into existing wired network management systems. All WSM based wireless products can be managed through the open management protocol.
WSM is SOA complied, modular based, fully expandable and evolving with the growing needs of network management. It offers a web-based management system and a simple and user-friendly management platform for wireless network administrators. When working in iMC and coupled with other modules, it also implements panel wireless management, troubleshooting, performance monitoring, software version control, deployment configuration management and user access management.
Features |
WA5320X |
WA5630X |
|||
Weight |
4.2Kg |
4.7Kg |
|||
Dimensions (bracket length not included) |
φ240mm |
φ260mm |
|||
32-pin outdoor integrated cable |
1 |
Ethernet port |
2 |
||
IOT port |
1 |
||||
Console |
1 |
||||
Antenna |
Built-in hardware smart antenna |
||||
IoT |
Support standard IoT expansion such as RFID, ZigBee |
||||
Built-in Bluetooth |
√ support Bluetooth console and iBeacon shake |
||||
Working frequencies |
802.11ac/n/a : 5.725GHz-5.850GHz ; 5.47~5.725GHz; 5.15~5.35GHz (China) 802.11b/g/n : 2.4GHz-2.483GHz (China) |
||||
Modulation |
OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps MIMO-OFDM (11ac): MCS 0-9 |
||||
Maximum radio power |
27dBm |
||||
GPS |
√ |
||||
Adjustable power |
1dBm |
||||
Working temperature/storage temperature |
-40ºC~65ºC/ -40ºC~85ºC |
||||
Working humidity/storage humidity |
0%~100%(non-condensing) |
||||
Protection class |
IP68 |
||||
Power consumption |
6~50W |
7.5~55W |
|||
Safety compliance |
GB4943, EN60601-1-2(Medical), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
||||
EMC |
GB9254-2008, EN301 489, EN55022, FCC Part 15 |
||||
Radio frequency certification |
FCC Part 15, EN 300 328, EN 301 893, and the model approval standards of wireless devices by the Chinese Ministry of Information Industry |
||||
Health |
FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
||||
MTBF |
>250000H |
