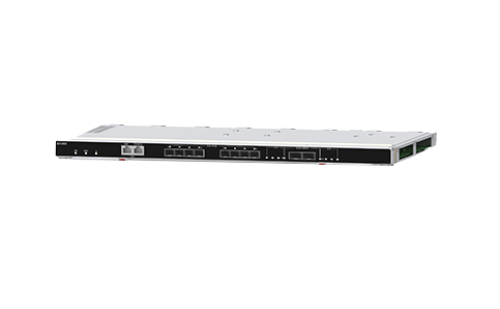

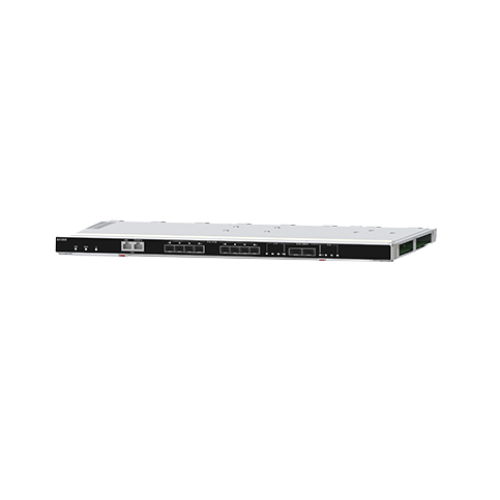

H3C UniServer BX1010E 25G Ethernet Switch Module is specially designed for H3C UniServer B16000 BladeSystem. Featuring Comware's Intelligent Resilient Fabric (IRF) resiliency, stacking and stability for data centers that need 25G switching and routing capabilities but have limited budgets.
|
External Port
|
1 AMC Serial Port
1 Console Port
8 1/10/25GE Ports
2 40/100GE Ports
|
|
Internal Port
|
20 10/25GE Ports
|
|
Weight
|
3.48kg
|
|
Power
|
80W
|
|
Operating temperature
|
5°C to 45°C (41°F to 113°F) *
|
|
Dimensions (H × W × D)
|
27mm x 491.6mm x 296.5mm (1.06 x 19.35 x 11.67 in)
|
*The Options may be different depending on the specific requirement, refer to related User Guide
