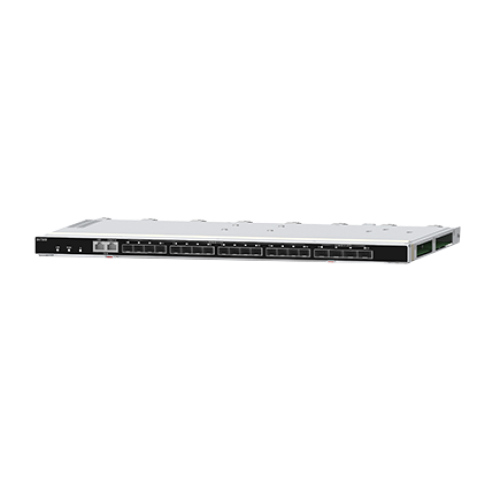

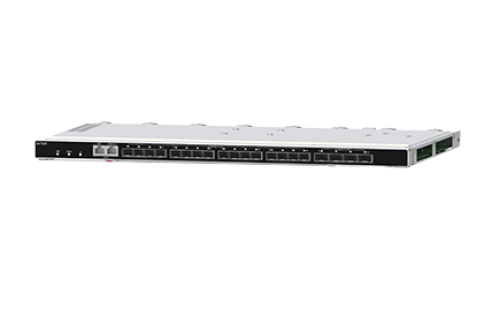

H3C UniServer BX720E 10G Ethernet Switching Module is specially designed for H3C UniServer B16000 BladeSystem. Featuring Comware's Intelligent Resilient Fabric (IRF) resiliency, stacking and stability for data centers that need 10 Gigabit switching and routing capabilities but have limited budgets.
|
External Port
|
1 AMC Serial Port
1 Console Port
16 1/10GE Ports
4 40GE Ports
|
|
Internal Port
|
38 10GE Ports
|
|
Weight
|
3.6kg
|
|
Power
|
90W
|
|
Operating temperature
|
5°C to 45°C (41°F to 113°F) *
|
|
Dimensions (H × W × D)
|
27mm x 491.6mm x 296.5mm (1.06 x 19.35 x 11.67 in)
|
*The Options may be different depending on the specific requirement, refer to related User Guide
