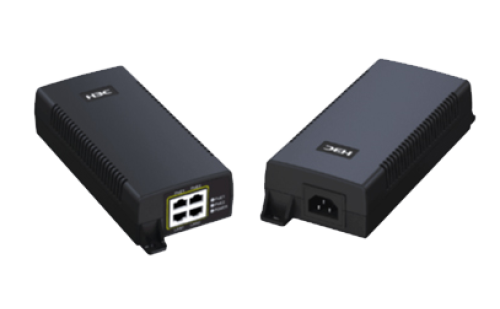

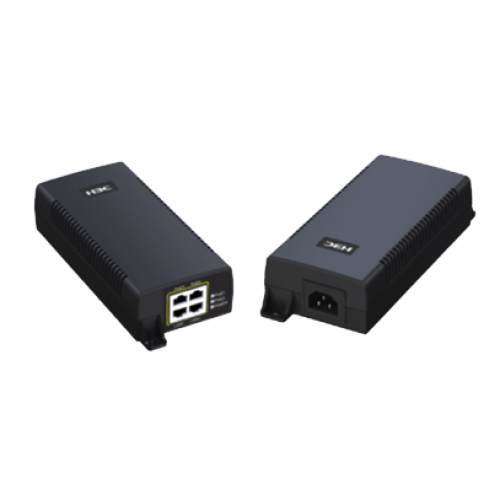

ADP060-55V-POE-GL is a dual-Port centralized network remote power adapter, and designed for indoor or outdoor scenarios. The waterproof enclosure is needed for outdoor deployment. Its Voltage input is from 100 to 240VAC. The adapter can connect to network terminal equipment with CAT5e cable, working for 100M/1000M/10G network scenarios.
Item |
Specification |
Size(W×D×H) |
208mm × 85mm × 46mm |
Weight |
437g |
Input Voltage |
100V AC~240V AC;50/60Hz |
Input Current |
1.5A Max, at 115Vac, Full load 0.75A Max, at 230Vac, Full load |
Input Connector* |
IEC320 C14 |
AC Inrush Current |
30A Max. At 115Vac, Cold start. 60A Max. At 230Vac, Cold start |
Output Voltage |
55V |
Output rated current |
1.1A |
Total Output Power |
60W |
Output Connection |
Pins 3,6, 4,5(+) Pins 1,2, 7,8 (-) |
Power Efficiency |
Level V |
Protection |
OCP,OVP,SCP |
Temperature |
Operation: -30℃~55℃ Non-operation: -40℃~70℃ |
Humidity(Non-condensing) |
5%~95% |
Altitude |
Up to 5000m |
EMC |
EN 55032: RE,CE CISPR 32: RE,CE IEC 61000-4-2: ESD IEC 61000-4-3: RS IEC 61000-4-4: EFT IEC 61000-4-5: Surge IEC 61000-4-6: CS IEC 61000-4-11: DIPS |
Safety Approvals |
CE,TUV, CCC |
* Note: AC power cord will be configured with the adapter according to the country or areas
