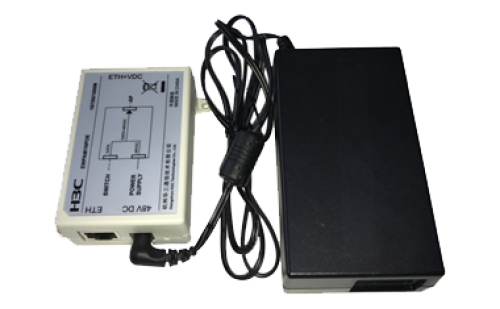

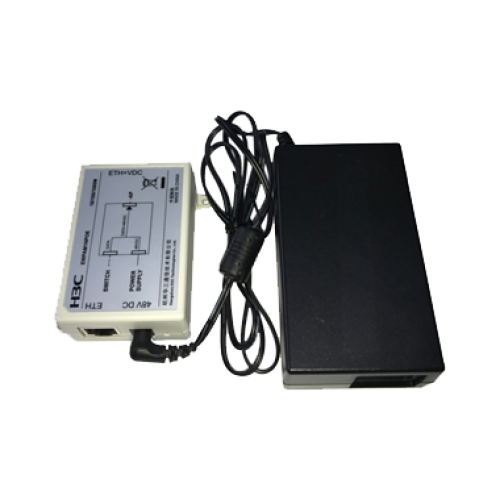

ADP040-54V-POE-GL is centralized network remote power adapter with single port, and designed for indoor wireless AP. Its Voltage input is from 90 to 264VAC. This adapter can connect to other network terminal equipment, such as wireless AP, with CAT5e cable, working for 10/100/1000M network scenarios.
|
Item
|
Specification
|
|
Size（L×W×H）
|
Adapter: 110mm × 62mm × 31.5mm
Injector: 79mm × 70mm × 31mm
|
|
Weight
|
282g
|
|
Input Voltage
|
90V AC～264V AC; 47~63Hz
|
|
Input Current
|
1.5A Max, at 115Vac, Full load
0.8A Max, at 230Vac, Full load
|
|
Input Connector*
|
IEC320 C14
|
|
Output Voltage
|
54V
|
|
Output rated current
|
0.74A
|
|
Output Power
|
40W
|
|
Output Connection
|
Pins 4,5(+) Pins 7,8 (-)
|
|
Power Efficiency
|
Level VI
|
|
Protection
|
OCP,OVP,SCP
|
|
Temperature
|
Operation: -10℃～45℃
Non-operation: -40℃～70℃
|
|
Humidity（Non-condensing）
|
5%～95%
|
|
Altitude
|
Up to 5000m
|
|
EMC
|
EN 55032: RE,CE
CISPR 32: RE,CE
IEC 61000-4-2: ESD
IEC 61000-4-3: RS
IEC 61000-4-4: EFT
IEC 61000-4-5: Surge
IEC 61000-4-6: CS
IEC 61000-4-11: DIPS
|
|
Safety Approvals
|
CE,TUV,UL,CCC
|
*Note: AC power cord will be configured with the adapter according to the country or areas.
