Product Details

As the fifth generation mobile communication network, 5G network is the extension and development of 4G mobile communication network. It has the following characteristics:

High-speed: The maximum downlink bandwidth of the network can reach 10 Gbps, which is 50-100 times as much as that of the 4G network. It can fully meet the needs of high-resolution media transmission such as 4K and VR, making it possible for more immersive live VR broadcasting.

Large capacity: Due to the introduction of high-frequency spectrum resources and the support of large-scale MIMO technology, the capacity of 5G network will increase times compared with the present cases, which means that base stations can provide services for more terminals at the same time to meet the requirements of future high-density Internet of Things terminal access scenarios.

Low latency: 5G network has a delay as low as 1 millisecond. Lower latency means more timely response, which is significant for unmanned driving, emergency accident handling, industrial production control and other scenarios.

In order to meet the needs of 5G network with high speed, large capacity and low latency, H3C customizes IPRAN RA5000 series of high performance integrated access routers for 5G network backhaul scenario to meet the sustainable development needs of operators and dedicated network of large enterprise, to help operators improve network bandwidth and deployment efficiency, and to reduce operation and maintenance costs.

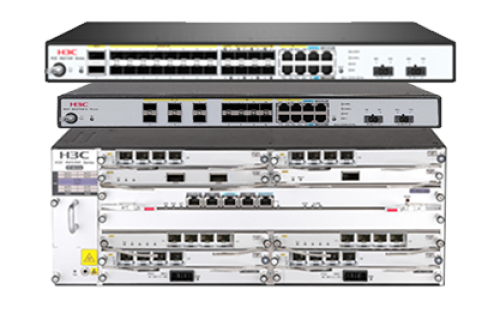

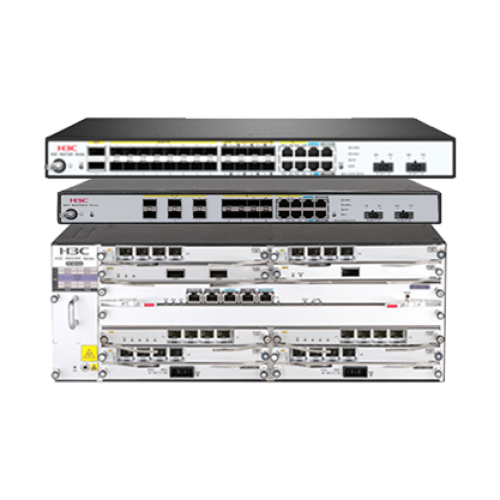

H3C RA5000 series integrated access routers include RA5100-G, RA5100-G-HI, and RA5300 products, which have the following characteristics:

Dual master control, fan redundancy, power redundancy (RA5300) , support for AC and DC power, and other reliability design, professional integrated business processing engine, providing line speed business processing capabilities;;

Support GE, 10GE, 25GE, 50GE, 100GE and other interface types, can provide 10GE, 25GE, 50GE and 100GE bandwidth ring network processing capacity;

Support MPLS L2/L3 VPN, MPLS TE, Segment Routing, EVPN, FlexE and other features, meet the requirements of various traffic forwarding models, provide flexible business adaptation capabilities;

Supports ToD+1PPS and BITS clock interface, 1588v2 and SyncE (synchronous Ethernet) protocol, and uses hardware coprocessor to ensure ns level clock accuracy.

Comprehensive and efficient OAM functions, such as: BFD, Y. 1731, RFC2544, TWAMP Light, Y. 1564 and other network quality detection functions, using hardware coprocessors to ensure high detection accuracy

Support advanced features such as SR/SRv6, iFIT, EVPN, and Telemetry, providing a foundation for intelligent management and detailed analysis solutions for the network.

Support AD-WAN backbone solution, cooperate with H3C AD-WAN controller and analyzer, realize network intelligent scheduling and visualized management

Support MPLS L2VPN FRR, MPLS L3VPN FRR, PW redundancy, LFA and other reliability technologies, cooperate with hardware BFD detection, realize millisecond level switching after network failure, without affecting the upper business;

Support multiple network slicing technologies; Support FlexE slicing technology at 10Mbps level, Support sub-interface slicing at Mbps level, support network slicing technology with SliceID at Mbps level, meet the requirements of network critical business isolation and bandwidth guarantee.

RA5000 series adopts 220 mm depth design to support the deployment of existing cabinets of base stations, and supports the maximum operating environment from -40℃ to 60℃ to meet the deployment requirements of different physical environments.

Continuous IPv6 evolution capability, support rich IPv6 features, meet the subsequent IPv6 expansion networking requirements;

Advanced Hardware Architecture Design

RA5300 adopts dual master control design, the main and standby switching business is not interrupted, business card supports hot plug-in, improve the reliability of the whole machine operation;

RA5300 adopts non-blocking switching bus architecture, professional integrated service processing engine, and supports up to 100G ring network and line speed service processing capability.

Support GE, 10GE, 25GE, 50GE and 100GE business boards, provide flexible configuration model;

Hardware coprocessor is used to accelerate the processing of protocol messages such as clock synchronization, BFD and OAM, providing ns-level clock accuracy and millisecond level link fault detection.

Supports 100G FlexE interface, guarantees service isolation load and flexible bandwidth adjustment;

Mature Network Platform

The H3C mature Comware V7 modular cloud network operating system is adopted to improve the operation performance, make the routing convergence faster and improve the system availability.

Business modularization design concept supports loose coupling of business modularization, and can realize dynamic loading and upgrading of modules and patches.

Support Telemetry, Netconf, YANG, SNMP, provide SDN software define network to expanding;

Carrier-level reliability

Support abundant reliability characteristics to ensure the uninterrupted operation of network equipment, including:

Support BFD for ISIS, OSPF, BGP, PW, LDP to achieve fast convergence of network faults;

Support MPLS L2VPN FRR (Fast Rerouting), MPLS L3VPN FRR, OSPF/ISIS FRR to achieve fast handover of fault links;

Support a variety of service protection technologies: LFA, LSP (1:1) tunnel protection, PW Redundancy service protection, which can meet the millisecond level reliability requirements;

Support high-precision error detection function based on message verification, automatically triggers interface status, PW, routing, L3VPN for fast switching, to ensure high availability of services;

Overall and Efficient OAM

Supports BFD OAM, it can realize fast detection and detection of link faults.

Supports network quality detection functions such as Y. 1731, RFC2544, TWAMP Light, Y. 1564, etc.

Supports hardware coprocessor to process detection protocol messages, and achieves millisecond level detection accuracy.

Supporting hardware coprocessor to send and receive detection traffic, guaranteeing the detection capability of 10GE, 25GE, 50GE, 100GE links;

High Precision Clock Synchronization

Supports G. 8275.1, realizes high precision time synchronization through SyncE + PTP, provides ns level time synchronization guarantee;

SyncE is supported to achieve frequency synchronization, and its performance meets G. 8262.1 requirement.

Support PTP (Precision Time Protocol) IEEE 1588v2 protocol to achieve synchronization of time

Supports BMC (Best Master Clock) algorithm, avoids generating clock loops, and supports the selection and switching of high quality clock sources.

Support OC/BC/ TC multiple clock types;

Rich routing and IPv6 features

Support OSPF、ISIS、BGP、OSPFv3、BGP4+、ISISv6 and other rich dynamic routing characteristics;

Support comprehensive MPLS network characteristics, flexibly deploy MPLS L3VPN, MPLS L2VPN, TE (Traffic Engineering), IPv6 MPLS L3VPN, EVPN, Segment Routing and other applications to meet the needs of integrated services access;

Support IPv4 and IPv6 multicast, including: IGMPV1/V2/V3, IPv4 and IPv6 PIM-DM/SM, MBGP, MSDP, MLD;

Plug and Play, Efficient Operation and Maintenance

Standardized network management interface, support SNMP, NETCONF and other standard protocols , easy to adapt to the third party network management platform;

Support ISP DCN, meet the demand of plug- and play automatic deployment of equipment;

Supports network monitoring features such as Telemetry, flow classification statistics, Dying Gasp, etc.

The built-in EAA function monitors the internal events and states of the software and hardware components of the system, and provides automatic collection and troubleshooting mechanism of fault information.
