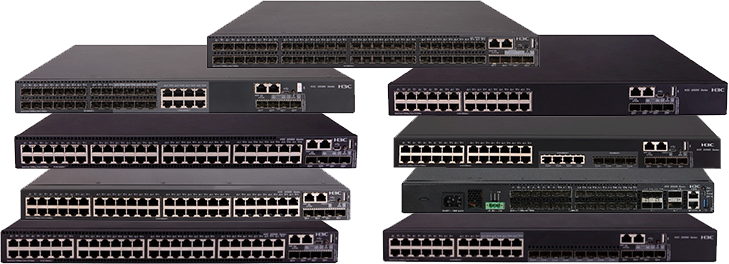

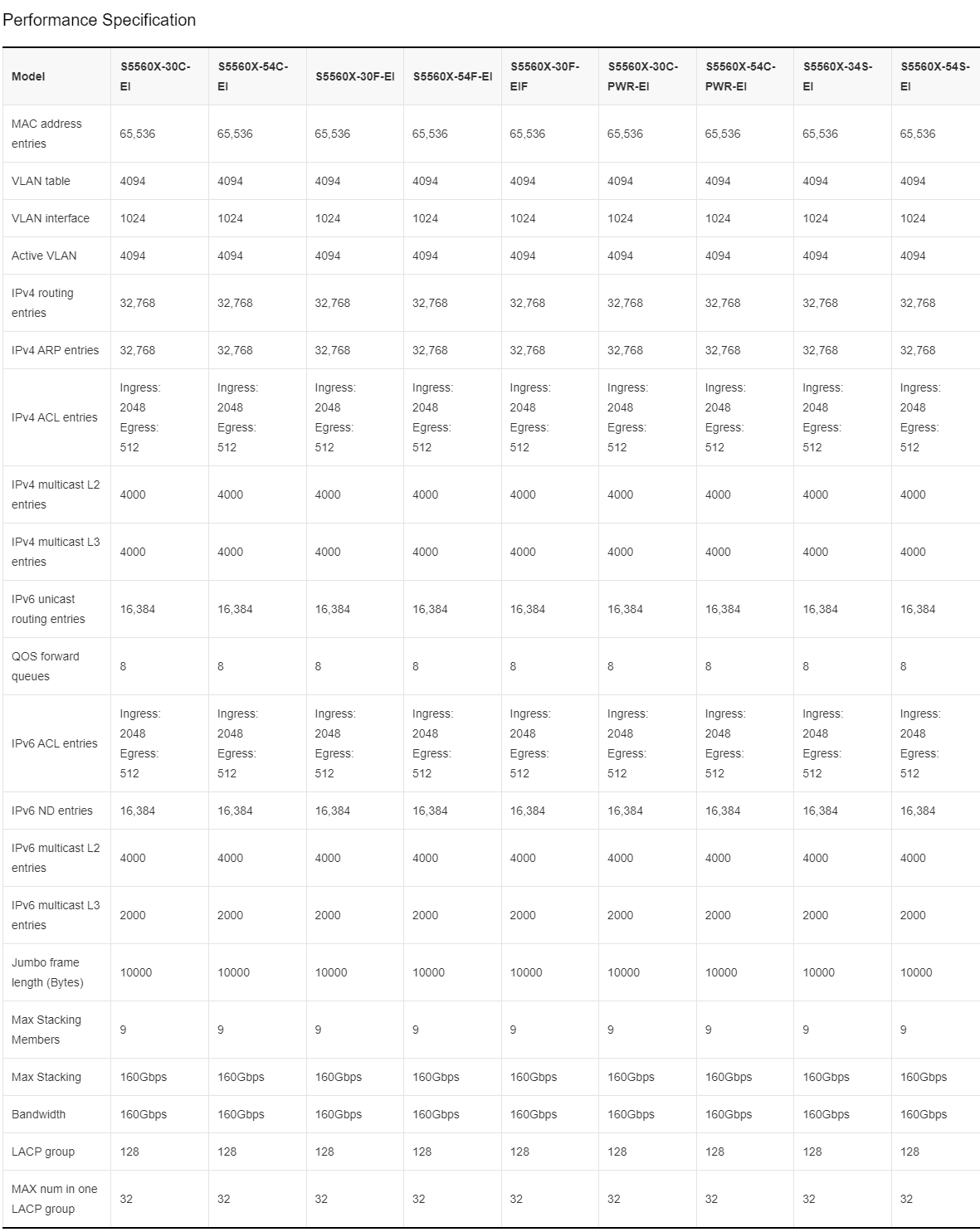

H3C S5560X-EI

Series Converged Gigabit Switches
Contact Us

Product Details

H3C S5560X-EI is a series of intelligent scalable GE switches with outstanding performance, high port density, and ease of installation. It offers the following benefits:

Industry-leading high-performance hardware architecture with H3C's state-of-the-art Comware 7 operating system.

Seamless wired and wireless integration on a unified switching platform. The license-based wireless access controller functionality enables wired and wireless local forwarding at the access layer, eliminates the bandwidth bottlenecks typical of a wireless controller, expands wireless deployment, and saves TCO.

Reliable hardware design with modular dual power supply and dual FAN design.

Embedded SmartMC delivers the easiest and simplest network operation and management solution.

Advanced free of charge enterprise features and functions like layered security, VxLAN, IRF and Macsec

High-density 10/100/1000Base-T autosensing Ethernet ports or 10GE SFP + fiber ports on board

One expansion slot, up to 9 optional interface cards that provide high density giga, 10GE, 25GE, 40GE and multigiga access.

As an access device on enterprise networks, the switch can provide GE connections for desktop applications. It can also be used as a core device on small- and medium-sized enterprise networks. On MAN or industrial networks, it provides GE access for users and transmits the aggregated traffic from downstream switches to core switches.

High Scalability and High Port Density

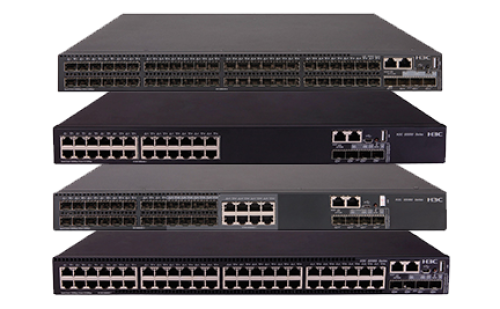

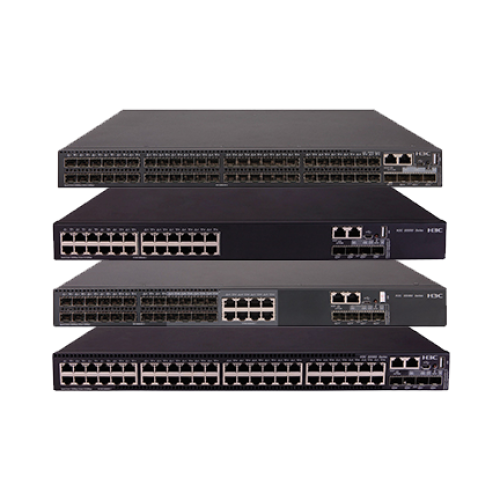

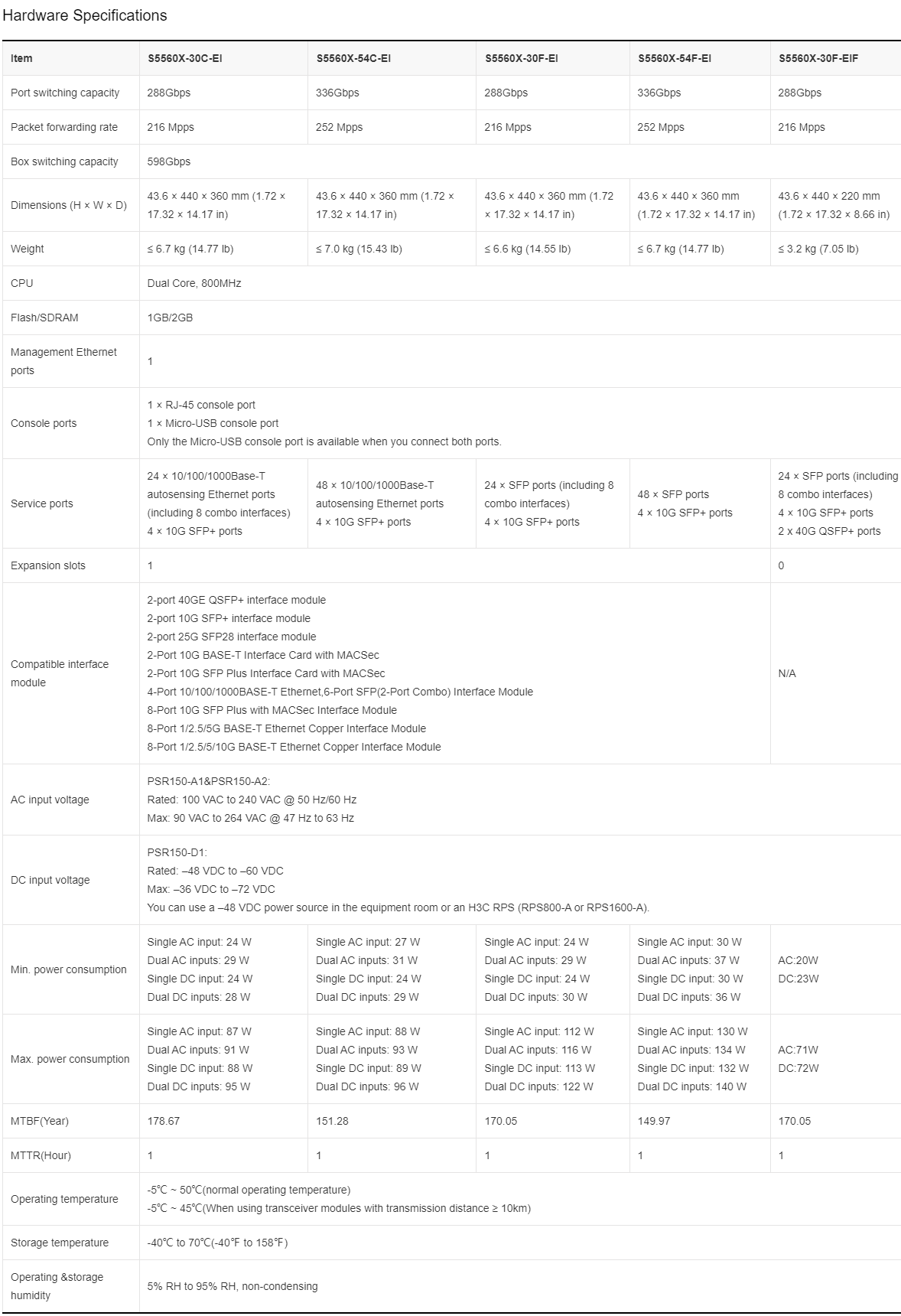

H3C S5560X-EI series switches provide 24 or 48 Giga and 4 fixed 10GE ports onboard with one expansion slot, supporting up to 9 types of interface cards like 2-port 10GBaseT / SFP+; 8-port 10G SFP+ card; 2-port 40G QSFP+ card and Multigiga ports. The switch supports up to 12 10G ports, 2*25G or 2*40G ports. The scaling flexibility and the high port density satisfy the requirements for hybrid configuration of copper ports and fiber ports at the distribution layer in large sized networks or at the core layer in SMB sized networks.

VXLAN (Virtual eXtensible LAN) Technology

Virtual eXtensible LAN (VXLAN) is a MAC-in-UDP technology that provides Layer 2 connectivity between distant network sites across an IP network. VXLAN enables long-distance virtual machine and data mobility and is typically used in data centers and the access layer of campus networks for multitenant services. The H3C implementation of VXLAN supports automatic VXLAN tunnel establishment with EVPN.

Open Application Architecture

In H3C open application architecture (OAA), the switch can accommodate high-performance OAP modules to offer dedicated services such as firewall, IPS, or load balancing in addition to conventional forwarding services. By installing OAP modules, the customers can use the switch as a multiservice device without having to buy separate service appliances, such as a firewall device.

Embedded Access Controller

H3C S5560X-EI series switches implement the WLAN function by installing an AC feature pack on the main control unit, thereby implementing both the wired function and the WLAN function on a single device. Embedded AC is a low-cost WLAN solution, save overall investment, improve forwarding capacity, realized a true unified wired and wireless solution in Campus. Max 256 APs supported on one single switches.

High-performance IPv4/IPv6 service capabilities

H3C S5560X-EI series switches come with IPv4/IPv6 dual-stack platform which provides sophisticated IPv4/IPv6 solutions by supporting multiple tunnels, IPv4/IPv6 Layer 3 routing protocols, multicasting, and policy-based routing. The S5560X-EI series switches are mature commercial IPv6 product that has passed the IPv6 network access certification of the Chinese Ministry of Industry and Information Technology and the IPv6 Ready Phase II certification.

H3C Intelligent Resilient Framework 2 (IRF2)

H3C S5560X-EI series switches are pre-built with Intelligent Resilient Framework 2 (IRF2). IRF2 provides the following benefits:

High scalability: With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost.

High reliability: The IRF2 patented 1: N backup technology allows each slave device in the IRF2 stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains uninterrupted.

Load balancing: IRF2 supports cross-device link aggregation, upstream and downstream can be connected to more than one physical link, which creates another layer of network redundancy and boosts the network resource utilization.

Availability: H3C Implements IRF2 through standard Forty Gigabit Ethernet (40GE) or Ten Gigabit Ethernet (10GE) ports which allocates bandwidth for business and application access and reasonably splits local traffic and upstream traffic. IRF2 rules not only able to obeyed within and across the rack, but also across the LAN

Software-Defined Networking

Software-defined networking (SDN) is an innovative network architecture that separates the control plane from the forwarding plane, typically by using OpenFlow. SDN significantly simplifies network management, reduces maintenance complexity and cost, enables flexible traffic management, and offers a good platform for core network and application innovations.

The S5560X-EI network switch series supports a large network flow table. Combined with H3C SDN controller, it can easily implement a two-layer network architecture and quickly add functions in existing network in order to drastically reduces network management complexity while substantially lowers network maintenance cost.

Comprehensive Security Control Policies

Endpoint Admission Defense (EAD), in conjunction with the backend system, integrates endpoint security (including anti-virus and patching) and network security (including network access control and access right control) into an interactive security system. By checking, isolating, repairing, managing, and monitoring the endpoints, this system turns reactive single-point defense to proactive, all-round defense, and dispersed management to centralized policy management. This system enhances the overall network protection against numerous security threats and improves the responsiveness to new threats.

The switch supports unified MAC address authentication, 802.1x authentication, and portal authentication; dynamic or static binding of user identifiers such as user account, IP address, MAC address, VLAN, and port number; and dynamic application of user profiles or policies (such as VLAN, QoS, and ACL) on users. Using the switch in conjunction with H3C IMC, you can manage and monitor online users in real time and take prompt action on illegitimate behaviors.

The switch offers a large number of inbound and outbound ACLs and VLAN-based ACL assignment.

The switch supports Unicast Reverse Path Forwarding (uRPF), which protects a network against source spoofing attacks, preventing DoS and DDoS attacks.

MACsec

MACsec is an ideal hop-by-hop link-layer security protocol for Ethernet networks, which are typically insecure. It provides the following services:

Data encryption: Encrypts data over the Ethernet link to protect data against security issues such as eavesdropping.

Antireplay: Prevents packets from being intercepted and modified en route to protect the network against unauthorized access.

Tampering protection: prevents packet tampering to protect data integrity.

MACsec supports the following deployments:

Client-oriented: Protects data transmission over the link between the client and its access device.

Device-oriented mode: Protects data transmission over the link between two peering devices.

The switch can cooperate with H3C iNode client and core switches such as S10500 and S7500 to provide a complete MACsec solution.

High Availability

The switch offers the following hardware high availability features:

1+1 power module redundancy and 1+1 fan tray redundancy.

Supports multiple AC and DC power module options.

Automatically monitors power module and fan tray status, and generates alarms when a power or temperature event occurs.

Adjusts fan speed based on the change in temperature.

In addition to hardware redundancy, the switch provides a variety of node and link redundancy and protection mechanisms, including:

Ethernet link aggregation, including LACP.

Spanning tree protocols, including STP, RSTP and MSTP.

Smart Link, which protects faster link switchover for dual uplink network.

Rapid Ring Protection Protocol (RRPP).

IRF 2 ring topology in conjunction with multichassis link aggregation.

Abundant QoS Features

The switch offers abundant QoS features, including:

Packet filtering based on packet header fields from Layer 2 through Layer 4, including source MAC, destination MAC, source IP, destination IP, TCP/UDP port number, protocol type, and VLAN.

Flexible queuing and scheduling algorithms configured on a per-port or per-queue basis, including strict priority (SP), weighted round robin (WRR), SP+WRR, weighted fair queuing (WFQ), and SP+WFQ.

Committed access rate (CAR) with the minimum granularity at 64 kbps.

Port mirroring in both outbound and inbound directions for network monitoring and troubleshooting.

Outstanding Management Capacity

The S5560X-EI switch series supports abundant management ports, such as the console port, mini-USB and the out-of-band network management port. It supports the Simple Network Management Protocol (SNMP) v1/v2c/v3, Open View, IMC, CLI, Web-based NMS and Telnet allowing easy device management. It also supports SSH2.0 to provide better protection management.

The S5560X-EI switch supports SPAN/RSPAN/ERSPAN mirroring, and multiple mirroring ports so that network traffic can be analyzed to carry out corresponding management and maintenance measures and traffic of network services and applications is visible. The S5500X-EI switch provides network stream analysis reports, which help users to promptly optimize the network structure and adjust resource deployment.

Smart Management Center (SmartMC)

SmartMC is H3C's latest offering and innovation that helps small and middle size enterprise network to address management issue and is free of charge, easy to use web management tool. SmartMC is embedded network management tool into the switch, it includes commander switches and other access switches.

SmartMC delivers the following benefits:

Intelligent operation: once the switch is powered on and SmartMC function is enabled, topology will be created automatically and user can go enhanced web GUI to check the latest status.

Centralized management: all management can be achieved via commander switch such as centralized configuration backup, and software version management, increasing working efficiency.

One key device replacement: in case of one switch failure, the new added same type switch can download the same configuration and work as old switch immediately

Multichassis Link Aggregation Group (M-LAG) (Original DRNI)

H3C S5560X-EI series switches support M-LAG, which enables links of multiple switches to aggregate into one to implement device-level link backup. M-LAG is applicable to servers dual-homed to a pair of access devices for node redundancy.

Streamlined topology: M-LAG simplifies the network topology and spanning tree configuration by virtualizing two physical devices into one logical device.

Independent upgrading: The DR member devices can be upgraded independently one by one to minimize the impact on traffic forwarding.

High availability: The DR system uses a keepalive link to detect multi-active collision to ensure that only one member device forwards traffic after a DR system splits.

Visualization Ability

H3C S5560X-EI series switches support Telemetry technology, which can send the switch's real-time resource information and alarm information to the O&M platform through the gRPC protocol.

The platform can realize network quality backtracking, troubleshooting, risk early warning, architecture optimization and other functions to accurately guarantee user experience by analyzing real-time data.
